Description
Brand - ZEN
Item Number - GIKSR18-PS ZEN
Category - Rod Ends

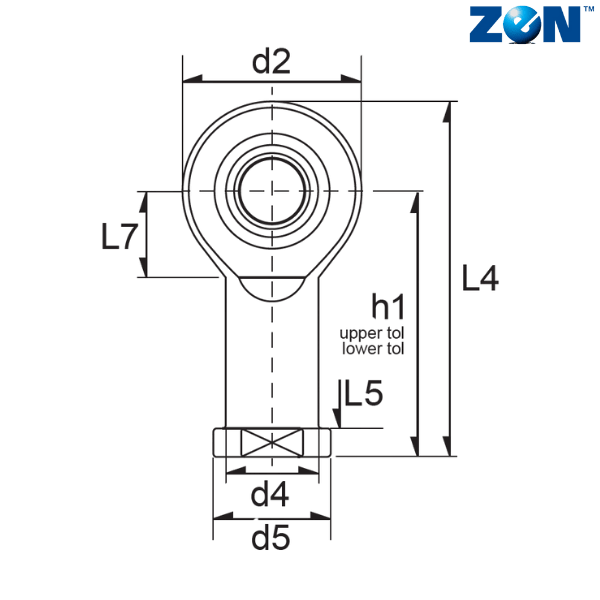

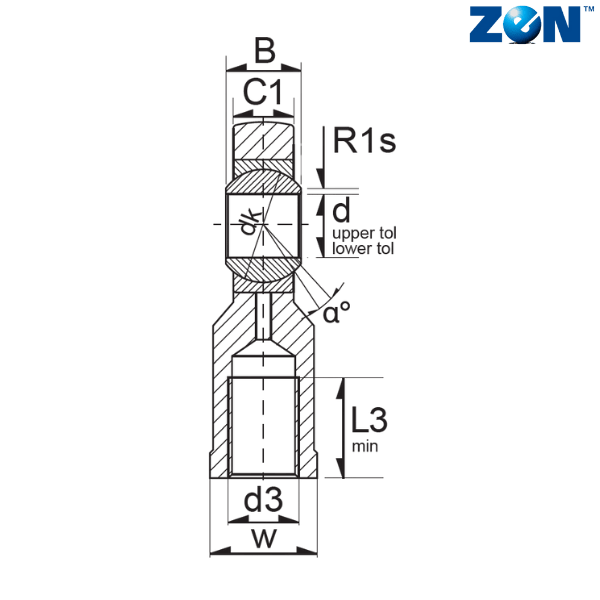

d (mm) - 18
d2 (mm) - 47
L4 (mm) - 94.5
B (mm) - 23
C1 (mm) - 16.5
D (mm) - 35
d1 (mm) - 21.8
d3 - M18X1.5
d4 (mm) - 25
d5 (mm) - 31
dk (mm) - 31.7
h1 (mm) - 71
L3 (mm) - 27
L5 (mm) - 10
L7 (mm) - 23
R1 (mm) - 0.3
W (mm) - 27
α - 15
Weight (kg) - 0.295
Dynamic Load Rating (N) - 42750
Static Laod Rating (N) - 20700
Radial Clearance - 0.005 - 0.045
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
