Description
Brand - ZEN
Item Number - GIKSR16-PS ZEN
Category - Rod Ends

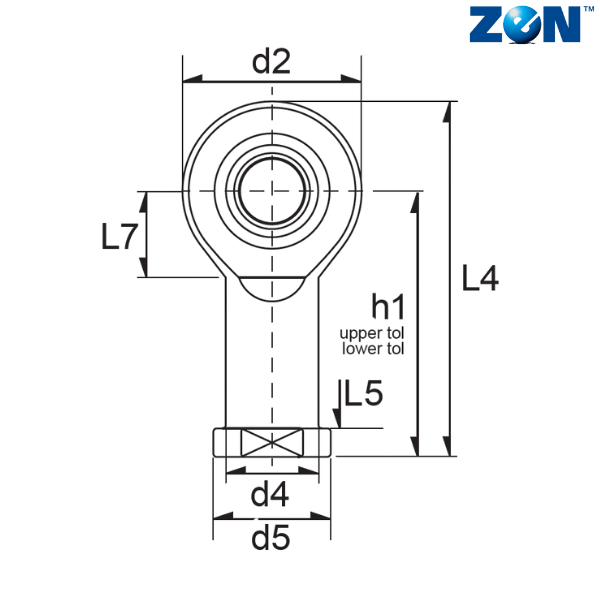

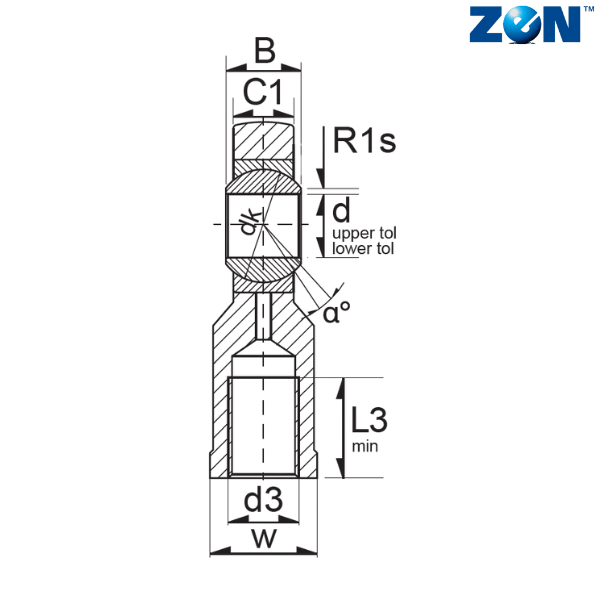

d (mm) - 16
d2 (mm) - 43
L4 (mm) - 85.5
B (mm) - 21
C1 (mm) - 15
D (mm) - 32
d1 (mm) - 19.3
d3 - M16
d4 (mm) - 22
d5 (mm) - 27
dk (mm) - 28.5
h1 (mm) - 64
L3 (mm) - 24
L5 (mm) - 8
L7 (mm) - 21
R1 (mm) - 0.3
W (mm) - 22
α - 15
Weight (kg) - 0.21
Dynamic Load Rating (N) - 35100
Static Laod Rating (N) - 17100
Radial Clearance - 0.005-0.045
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
