Description
Brand - ZEN
Item Number - GIKSR10-PS ZEN
Category - Rod Ends

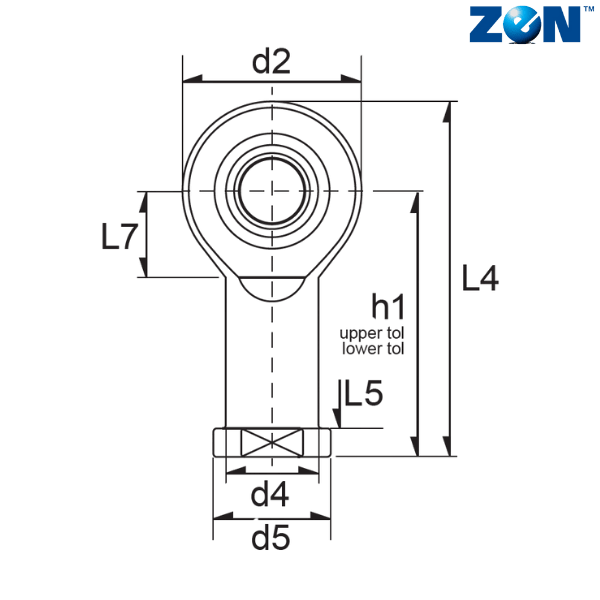

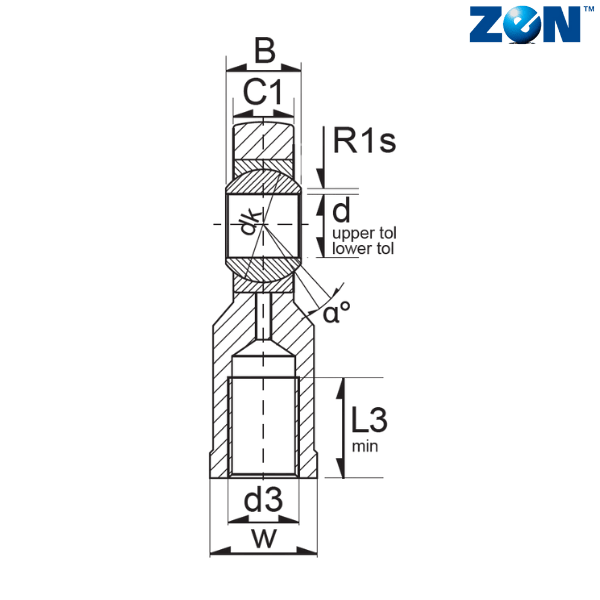

d (mm) - 10
d2 (mm) - 29
L4 (mm) - 57.5
B (mm) - 14
C1 (mm) - 10.5
D (mm) - 22
d1 (mm) - 12.9
d3 - M10
d4 (mm) - 15
d5 (mm) - 19
dk (mm) - 19
h1 (mm) - 43
L3 (mm) - 15
L5 (mm) - 6.5
L7 (mm) - 14
R1 (mm) - 0.3
W (mm) - 17
α - 13
Weight (kg) - 0.072
Dynamic Load Rating (N) - 16200
Static Laod Rating (N) - 7200
Radial Clearance - 0.005 - 0.040
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
