Description
Brand - ZEN
Item Number - GIKR25-PB ZEN
Category - Rod Ends

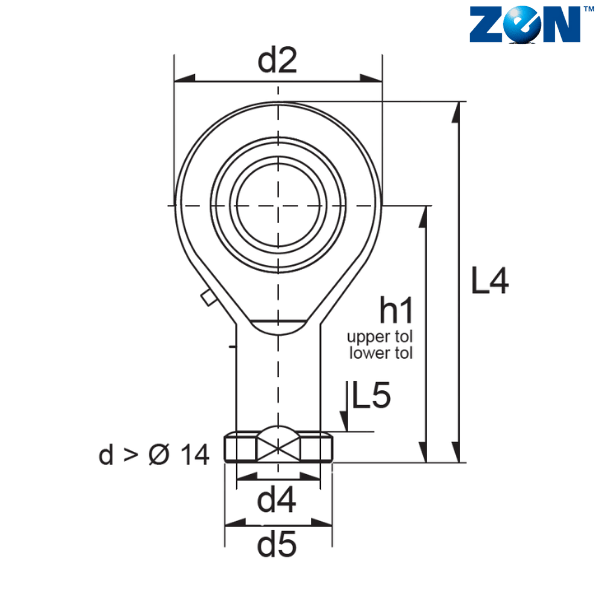

d (mm) - 25
d2 (mm) - 60
L4 (mm) - 124
B (mm) - 31
C1 (mm) - 22
D (mm) - 47
d1 (mm) - 29.6
d3 - M24X2
d4 (mm) - 33.5
d5 (mm) - 42
dk (mm) - 42.85
h1 (mm) - 94
L3 (mm) - 42
L5 (mm) - 12
L7 (mm) - 32
R1 (mm) - 0.3
W (mm) - 36
α - 15
Weight (kg) - 0.76
Dynamic Load Rating (N) - 42390
Static Load Rating (N) - 65610
Radial Clearance - 0-0.035
Notes :
Requiring Maintenance
** Images are for representation purposes only
