Description
Brand - ZEN
Item Number - GIKR22-PB ZEN
Category - Rod Ends

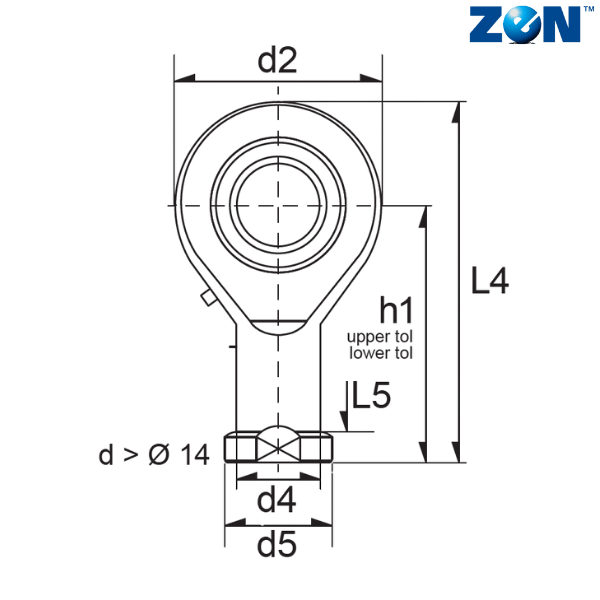

d (mm) - 22
d2 (mm) - 54
L4 (mm) - 111
B (mm) - 28
C1 (mm) - 20
D (mm) - 42
d1 (mm) - 25.8
d3 - M22X1.5
d4 (mm) - 30
d5 (mm) - 38
dk (mm) - 38.1
h1 (mm) - 84
L3 (mm) - 37
L5 (mm) - 12
L7 (mm) - 29
R1 (mm) - 0.3
W (mm) - 32
α - 15
Weight (kg) - 0.54
Dynamic Load Rating (N) - 34290
Static Load Rating (N) - 54990
Radial Clearance - 0-0.035
Notes :
Requiring Maintenance
** Images are for representation purposes only
