Description
Brand - ZEN
Item Number - GIKR20-PW ZEN
Category - Rod Ends

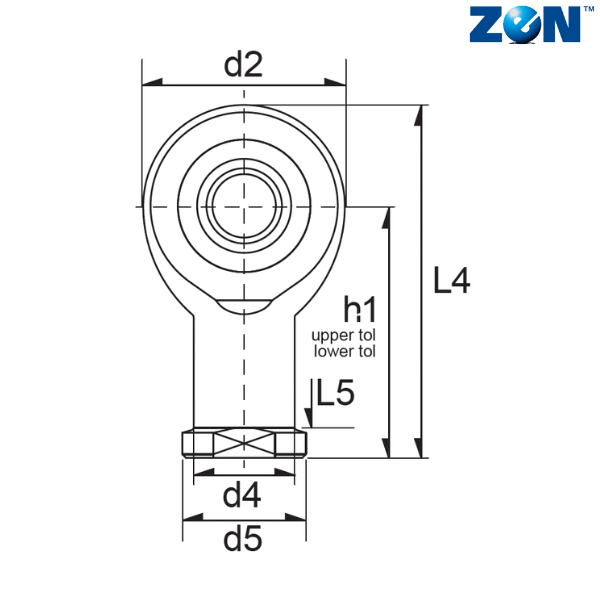

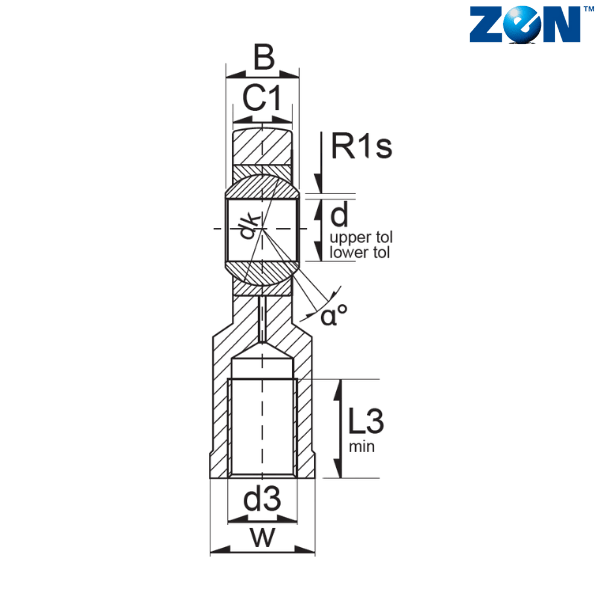

d (mm) - 20
d2 (mm) - 50
L4 (mm) - 102
B (mm) - 25
C1 (mm) - 18
D (mm) - 40
d1 (mm) - 24.4
d3 - M20X1.5
d4 (mm) - 27.5
d5 (mm) - 35
dk (mm) - 34.925
h1 (mm) - 77
L3 (mm) - 33
L5 (mm) - 10
L7 (mm) - 26
R1 (mm) - 0.3
W (mm) - 30
α - 14
Weight (kg) - 0.43
Dynamic Load Rating (N) - 50940
Static Laod Rating (N) - 41040
Radial Clearance - 0-0.035
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
