Description
Brand - ZEN
Item Number - GIKR16-PW ZEN
Category - Rod Ends

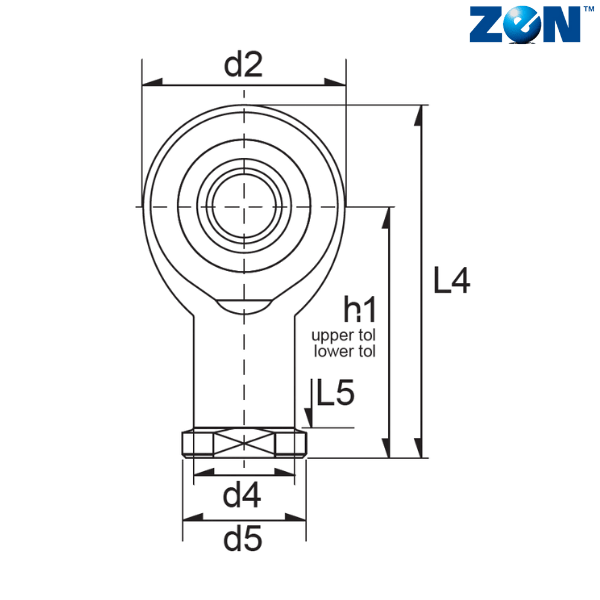

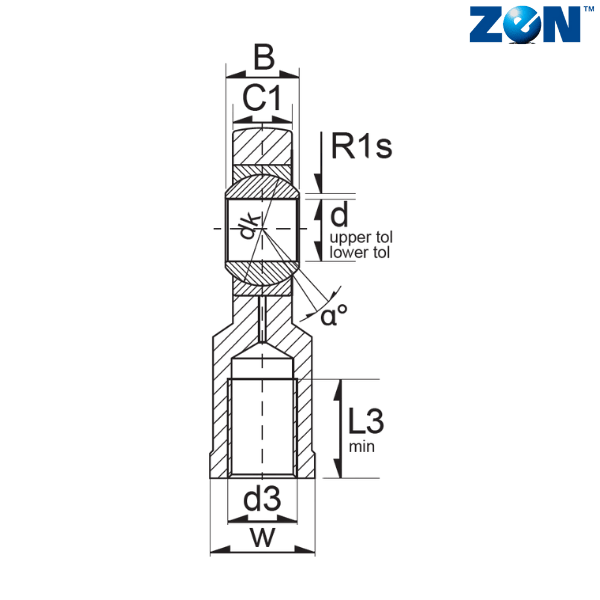

d (mm) - 16
d2 (mm) - 42
L4 (mm) - 85
B (mm) - 21
C1 (mm) - 15
D (mm) - 32
d1 (mm) - 19.4
d3 - M16
d4 (mm) - 22
d5 (mm) - 28
dk (mm) - 28.575
h1 (mm) - 64
L3 (mm) - 28
L5 (mm) - 8
L7 (mm) - 23
R1 (mm) - 0.3
W (mm) - 22
α - 15
Weight (kg) - 0.24
Dynamic Load Rating (N) - 34740
Static Laod Rating (N) - 40770
Radial Clearance - 0-0.035
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
