Description
Brand - ZEN
Item Number - GIKR14-PW ZEN
Category - Rod Ends

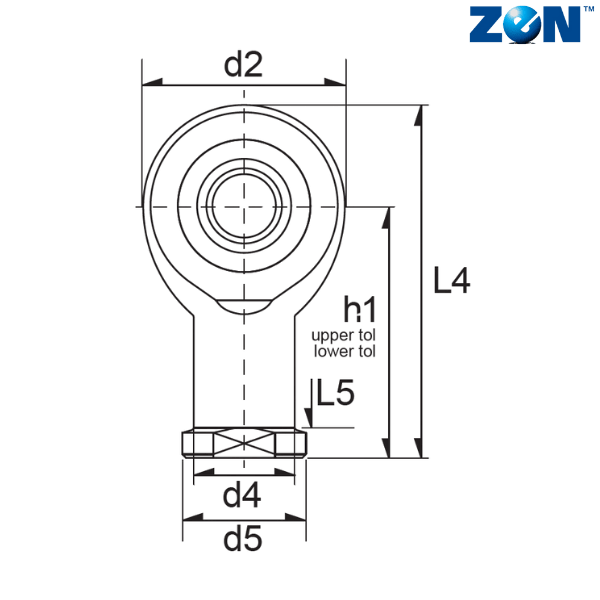

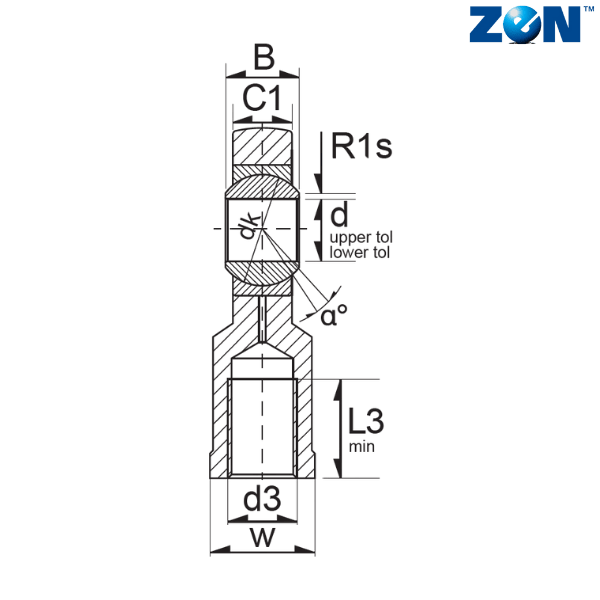

d (mm) - 14
d2 (mm) - 36
L4 (mm) - 75
B (mm) - 19
C1 (mm) - 13.5
D (mm) - 28
d1 (mm) - 16.9
d3 - M14
d4 (mm) - 21
d5 (mm) - 26
dk (mm) - 25.4
h1 (mm) - 57
L3 (mm) - 25
L5 (mm) - 8
L7 (mm) - 18
R1 (mm) - 0.3
W (mm) - 22
α - 16
Weight (kg) - 0.18
Dynamic Load Rating (N) - 27900
Static Laod Rating (N) - 28800
Radial Clearance - 0-0.035
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
