Description
Brand - ZEN
Item Number - GIKPR5-PW ZEN
Category - Rod Ends

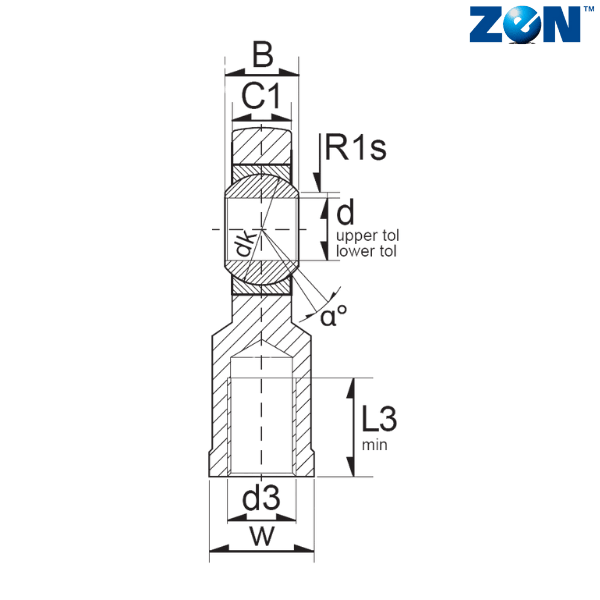

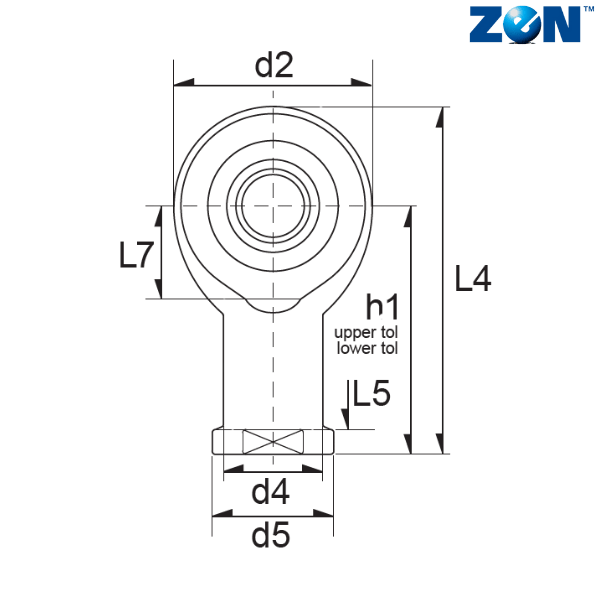

d (mm) - 5
d2 (mm) - 13
L4 (mm) - 8
B (mm) - 8
C1 (mm) - 6
D (mm) - 13
d1 (mm) - 7.7
d3 - M4
d4 (mm) - 8.5
d5 (mm) - 11
dk (mm) - 11.112
h1 (mm) - 27
L3 (mm) - 10
L5 (mm) - 4
L7 (mm) - 10
R1 (mm) - 0.3
W (mm) - 9
α - 13
Weight (kg) - 0.016
Dynamic Load Rating (N) - 6000
Static Laod Rating (N) - 9180
Radial Clearance - 0-0.035
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
