Description
Brand - ZEN
Item Number - GIKL8-PB ZEN
Category - Rod Ends

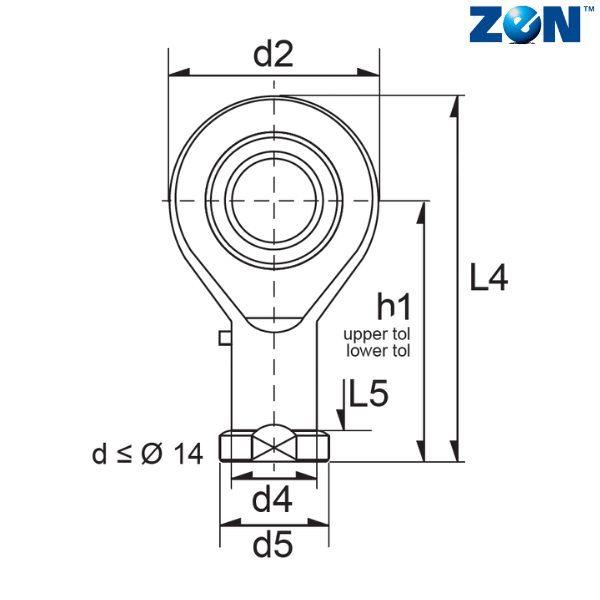

d (mm) - 8
d2 (mm) - 24
L4 (mm) - 48
B (mm) - 12
C1 (mm) - 9
D (mm) - 19
d1 (mm) - 10.4
d3 - M8
d4 (mm) - 12.5
d5 (mm) - 16
dk (mm) - 15.875
h1 (mm) - 36
L3 (mm) - 16
L5 (mm) - 5
L7 (mm) - 13
R1 (mm) - 0.3
W (mm) - 14
α - 14
Weight (kg) - 0.05
Dynamic Load Rating (N) - 6426
Static Load Rating (N) - 11790
Radial Clearance - 0-0.035
Notes :
Requiring Maintenance
** Images are for representation purposes only
