Description
Brand - ZEN
Item Number - GIKL6-PW ZEN
Category - Rod Ends

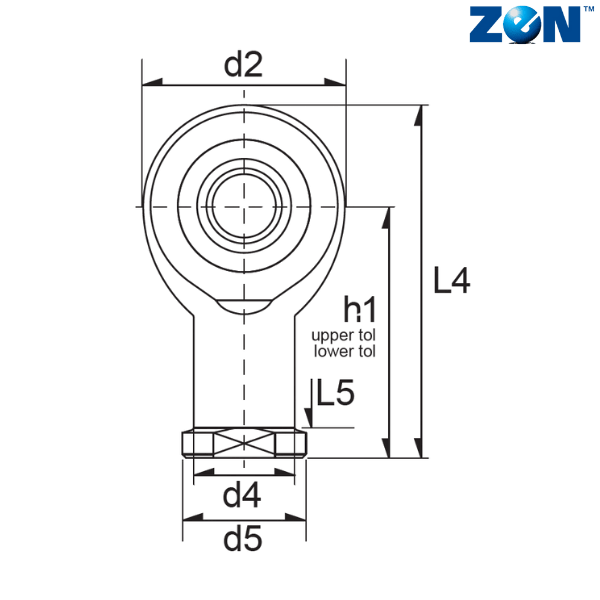

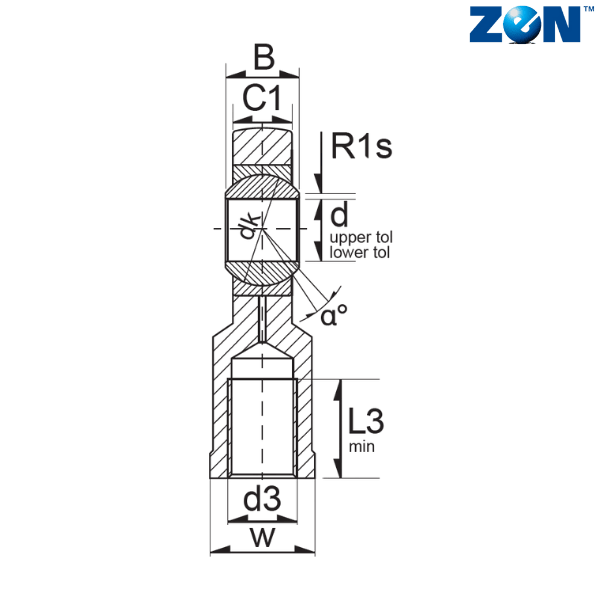

d (mm) - 6
d2 (mm) - 20
L4 (mm) - 40
B (mm) - 9
C1 (mm) - 6.75
D (mm) - 16
d1 (mm) - 9
d3 - M6
d4 (mm) - 10
d5 (mm) - 13
dk (mm) - 12.7
h1 (mm) - 30
L3 (mm) - 12
L5 (mm) - 5
L7 (mm) - 11
R1 (mm) - 0.3
W (mm) - 11
α - 13
Weight (kg) - 0.028
Dynamic Load Rating (N) - 6975
Static Laod Rating (N) - 7191
Radial Clearance - 0-0.035
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
