Description
Brand - ZEN
Item Number - GIKL18-PB ZEN
Category - Rod Ends

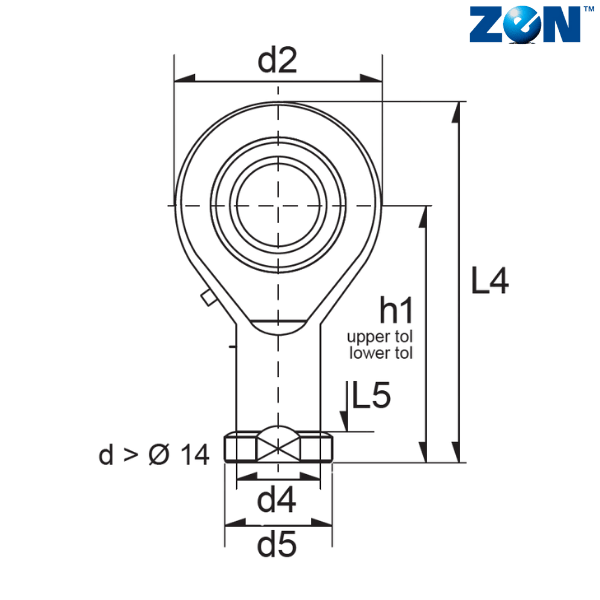

d (mm) - 18
d2 (mm) - 46
L4 (mm) - 94
B (mm) - 23
C1 (mm) - 16.5
D (mm) - 35
d1 (mm) - 21.8
d3 - M18X1.5
d4 (mm) - 25
d5 (mm) - 31
dk (mm) - 31.75
h1 (mm) - 71
L3 (mm) - 32
L5 (mm) - 10
L7 (mm) - 25
R1 (mm) - 0.3
W (mm) - 27
α - 15
Weight (kg) - 0.32
Dynamic Load Rating (N) - 23580
Static Load Rating (N) - 42300
Radial Clearance - 0-0.035
Notes :
Requiring Maintenance
** Images are for representation purposes only
