Description
Brand - ZEN
Item Number - GIKL12-PW ZEN
Category - Rod Ends

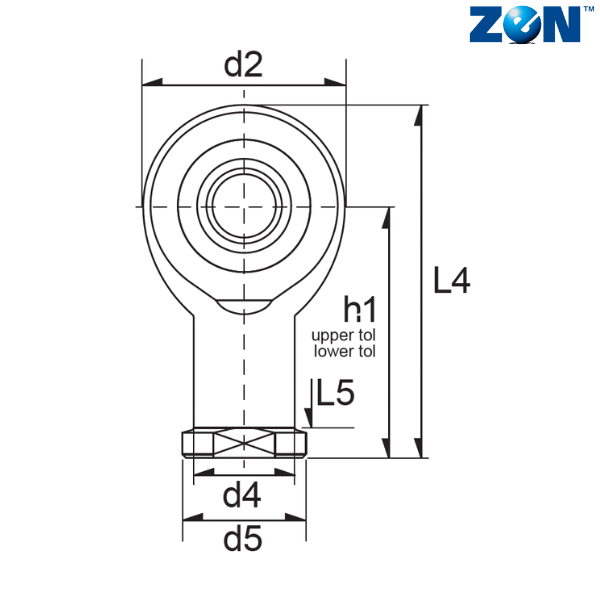

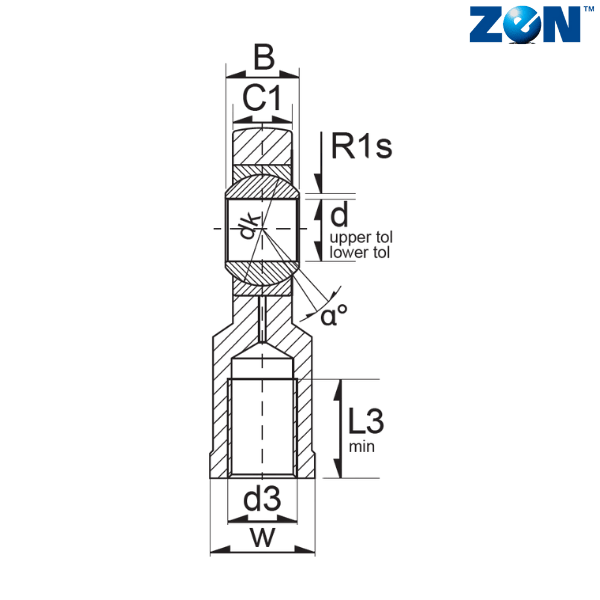

d (mm) - 12
d2 (mm) - 32
L4 (mm) - 66
B (mm) - 16
C1 (mm) - 12
D (mm) - 26
d1 (mm) - 15.4
d3 - M12
d4 (mm) - 17.5
d5 (mm) - 22
dk (mm) - 22.225
h1 (mm) - 50
L3 (mm) - 22
L5 (mm) - 6.5
L7 (mm) - 17
R1 (mm) - 0.3
W (mm) - 19
α - 13
Weight (kg) - 0.12
Dynamic Load Rating (N) - 21600
Static Laod Rating (N) - 18720
Radial Clearance - 0-0.035
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
