Description
Brand - ZEN
Item Number - GIHRK90-UK-2RS ZEN
Category - Hydraulic Rod Ends

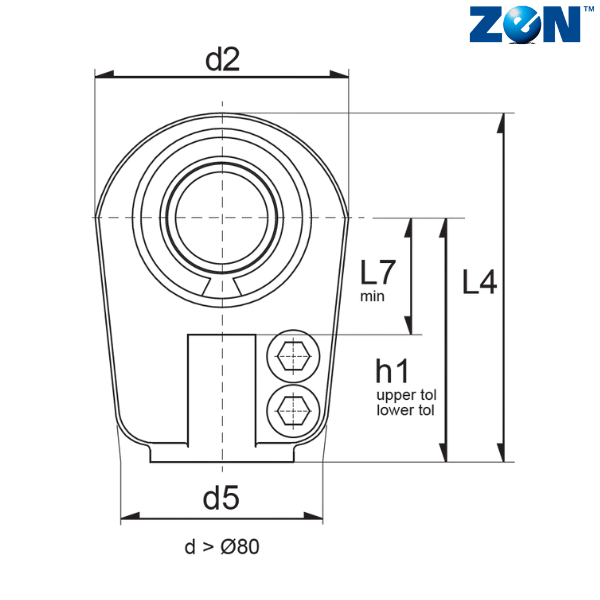

Inner Diameter (d) mm - 90
d2 (mm) - 206
L4 (mm) - 323
Width (B) mm - 60
C1 (mm) - 65
d1 (mm) - 98.1
d3 - M100x2.0
d4 (mm) - 124
d5 (mm) - 180
dk (mm) - 115
h1 (mm) - 210
L3 (mm) - 101
L7 (mm) - 90
α - 5
Weight (kg) - 21.5
Dynamic Load Rating (N) - 490000
Static Load Rating (N) - 980000
Notes :
2RS - Rubber Seals

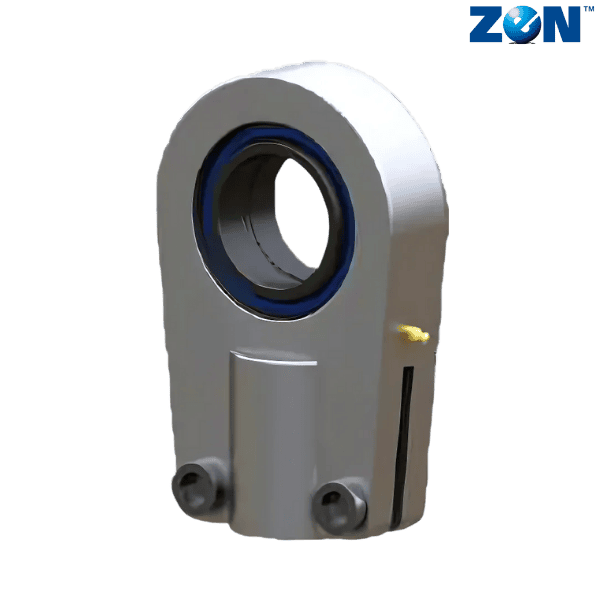

** Images are for representation purposes only
