Description
Brand - ZEN
Item Number - GIHRK80-UK-2RS ZEN
Category - Hydraulic Rod Ends

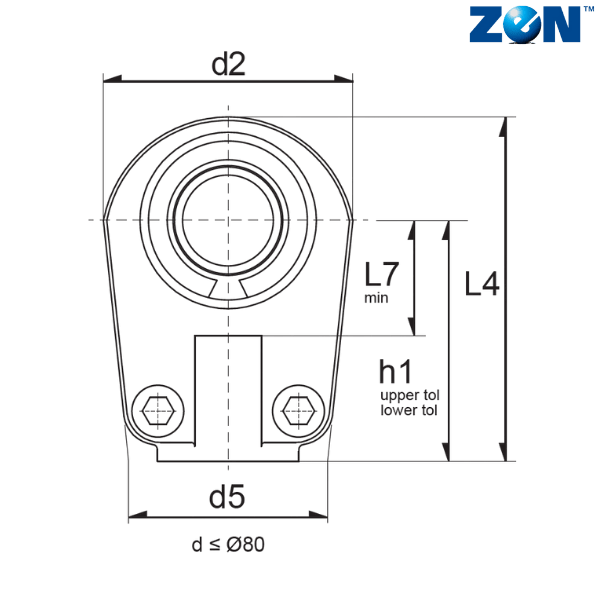

Inner Diameter (d) mm - 80
d2 (mm) - 176
L4 (mm) - 265
Width (B) mm - 55
C1 (mm) - 60
d1 (mm) - 89.4
d3 - M80x2.0
d4 (mm) - 105
d5 (mm) - 160
dk (mm) - 105
h1 (mm) - 170
L3 (mm) - 81
L7 (mm) - 80
α - 6
Weight (kg) - 12
Dynamic Load Rating (N) - 400000
Static Load Rating (N) - 670000
Notes :
2RS - Rubber Seals

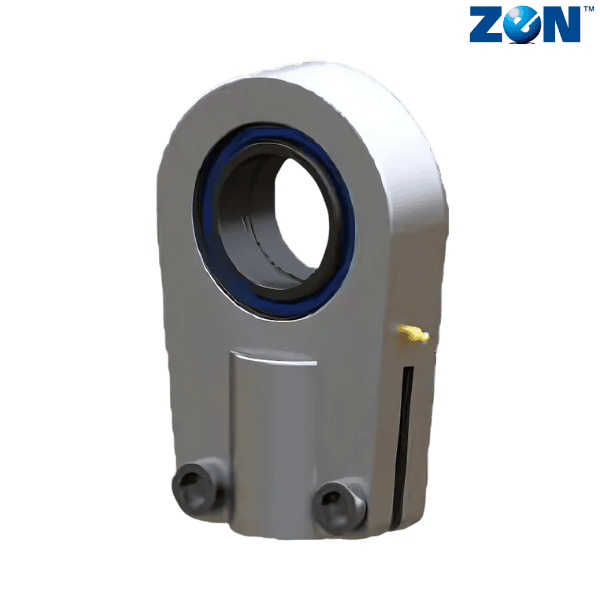

** Images are for representation purposes only
