Description
Brand - ZEN
Item Number - GIHRK70-UK-2RS ZEN
Category - Hydraulic Rod Ends

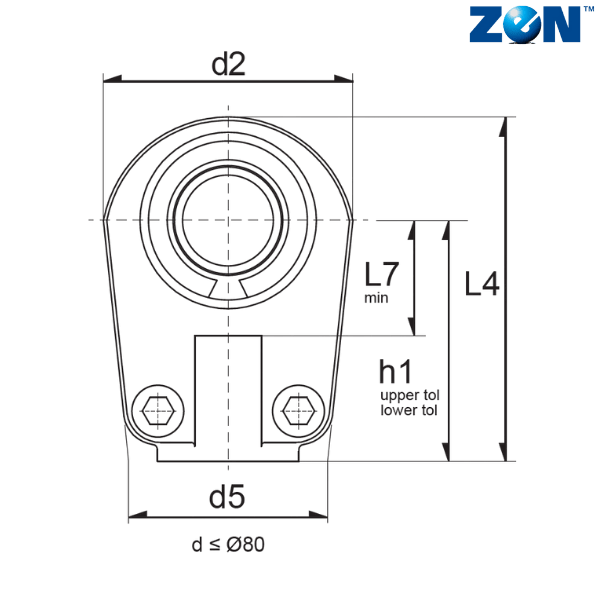

Inner Diameter (d) mm - 70
d2 (mm) - 154
L4 (mm) - 232
Width (B) mm - 49
C1 (mm) - 55
d1 (mm) - 77.9
d3 - M65x1.5
d4 (mm) - 86
d5 (mm) - 130
dk (mm) - 92
h1 (mm) - 150
L3 (mm) - 66
L7 (mm) - 75
α - 6
Weight (kg) - 8.5
Dynamic Load Rating (N) - 315000
Static Load Rating (N) - 540000
Notes :
2RS - Rubber Seals
** Images are for representation purposes only
