Description
Brand - ZEN
Item Number - GIHRK60-UK-2RS ZEN
Category - Hydraulic Rod Ends

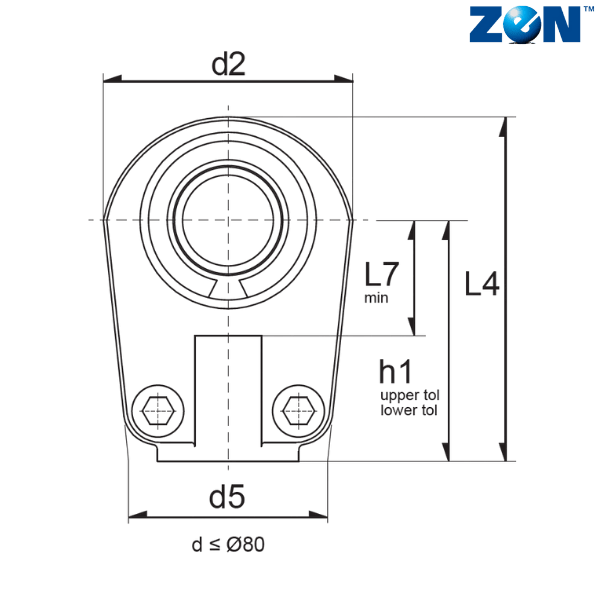

Inner Diameter (d) mm - 60
d2 (mm) - 130
L4 (mm) - 200
Width (B) mm - 44
C1 (mm) - 50
d1 (mm) - 66.8
d3 - M58x1.5
d4 (mm) - 75
d5 (mm) - 120
dk (mm) - 80
h1 (mm) - 130
L3 (mm) - 59
L7 (mm) - 65
α - 6
Weight (kg) - 5.4
Dynamic Load Rating (N) - 245000
Static Load Rating (N) - 400000
Notes :
2RS - Rubber Seals

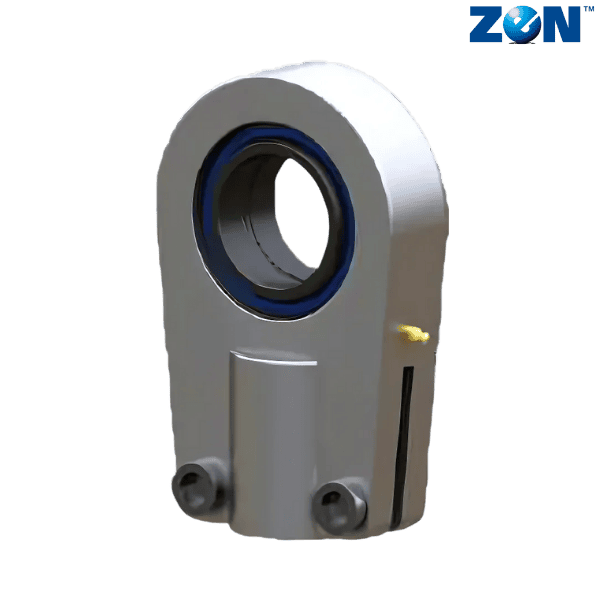

** Images are for representation purposes only
