Description
Brand - ZEN
Item Number - GIHRK50-UK-2RS ZEN
Category - Hydraulic Rod Ends

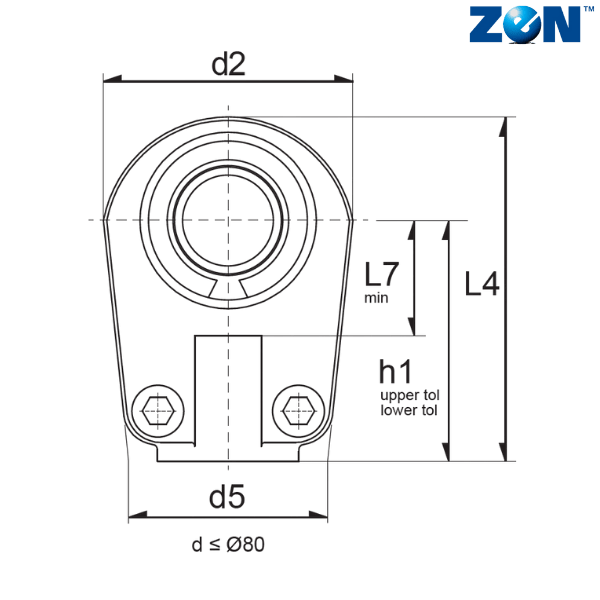

Inner Diameter (d) mm - 50
d2 (mm) - 116
L4 (mm) - 168
Width (B) mm - 35
C1 (mm) - 40
d1 (mm) - 55.9
d3 - M45x1.5
d4 (mm) - 61
d5 (mm) - 90
dk (mm) - 66
h1 (mm) - 105
L3 (mm) - 46
L7 (mm) - 55
α - 6
Weight (kg) - 3.8
Dynamic Load Rating (N) - 156000
Static Load Rating (N) - 365000
Notes :
2RS - Rubber Seals

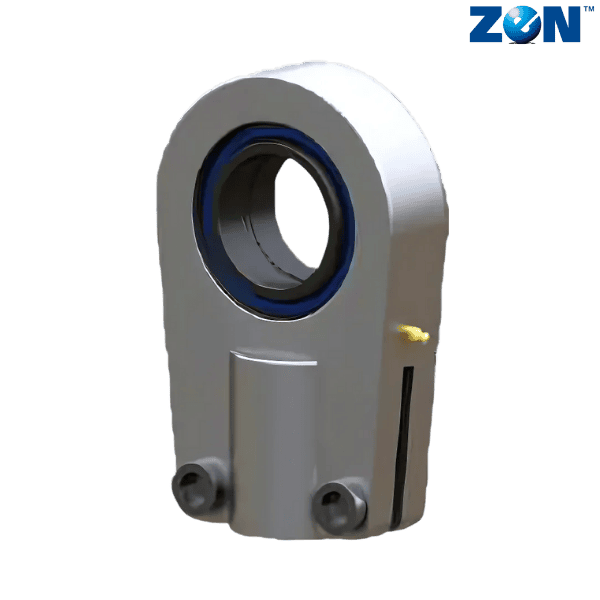

** Images are for representation purposes only
