Description
Brand - ZEN
Item Number - GIHRK40-DO ZEN
Category - Hydraulic Rod Ends

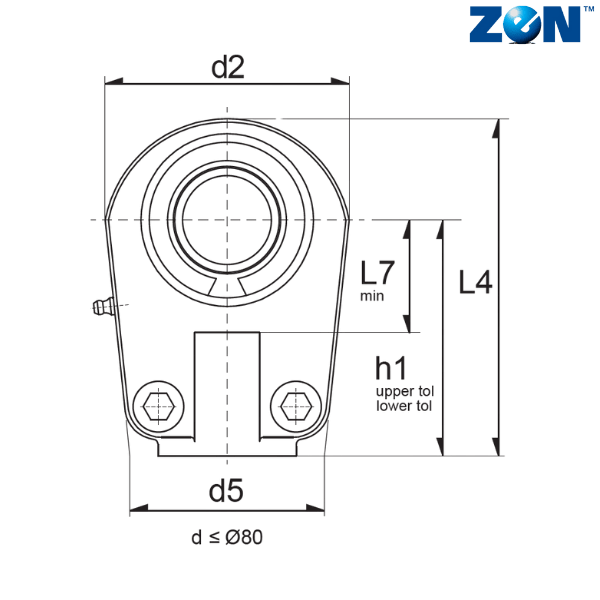

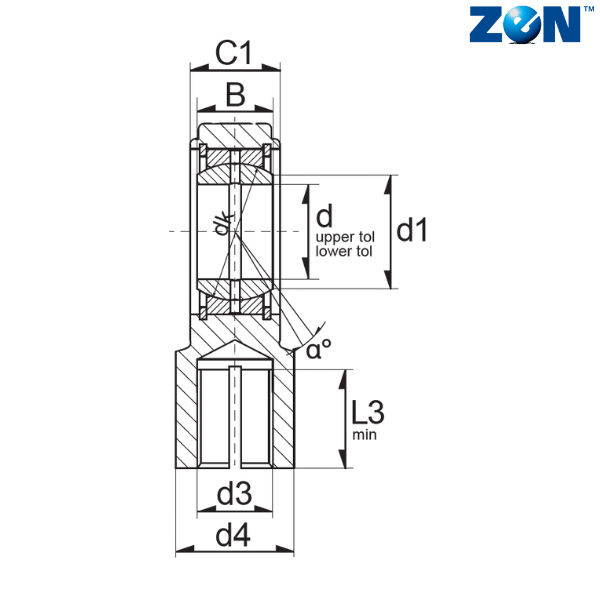

Inner Diameter (d) mm - 40
d2 (mm) - 94
L4 (mm) - 135
Width (B) mm - 28
C1 (mm) - 35
d1 (mm) - 45
d3 - M35x1.5
d4 (mm) - 49
d5 (mm) - 76
dk (mm) - 53
h1 (mm) - 85
L3 (mm) - 36
L7 (mm) - 45
α - 7
Weight (kg) - 2
Dynamic Load Rating (N) - 89190
Static Load Rating (N) - 205200

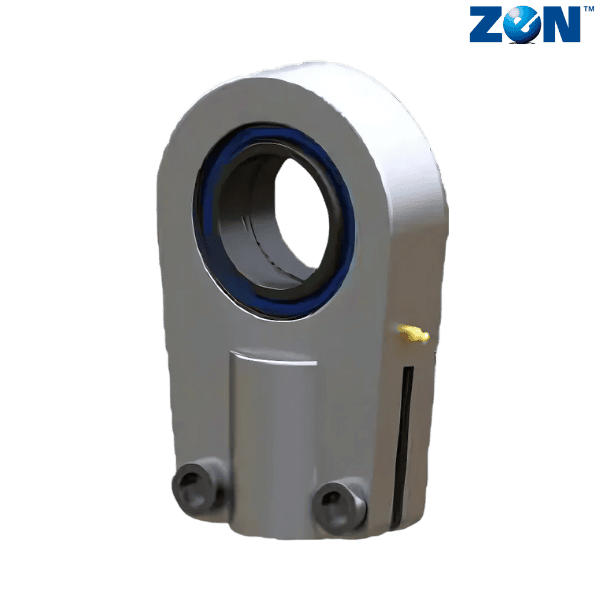

** Images are for representation purposes only
