Description
Brand - ZEN
Item Number - GIHRK35-DO ZEN
Category - Hydraulic Rod Ends

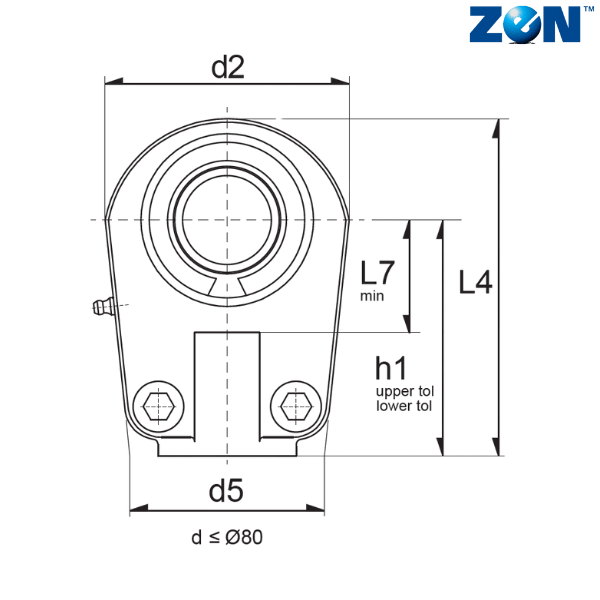

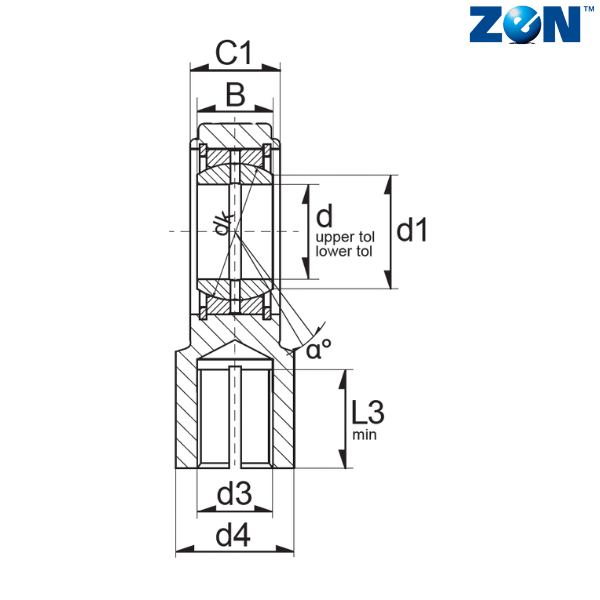

Inner Diameter (d) mm - 35
d2 (mm) - 78
L4 (mm) - 112
Width (B) mm - 25
C1 (mm) - 30
d1 (mm) - 39.8
d3 - M28x1.5
d4 (mm) - 40
d5 (mm) - 66
dk (mm) - 47
h1 (mm) - 70
L3 (mm) - 29
L7 (mm) - 38
α - 6
Weight (kg) - 1.2
Dynamic Load Rating (N) - 71910
Static Load Rating (N) - 126000

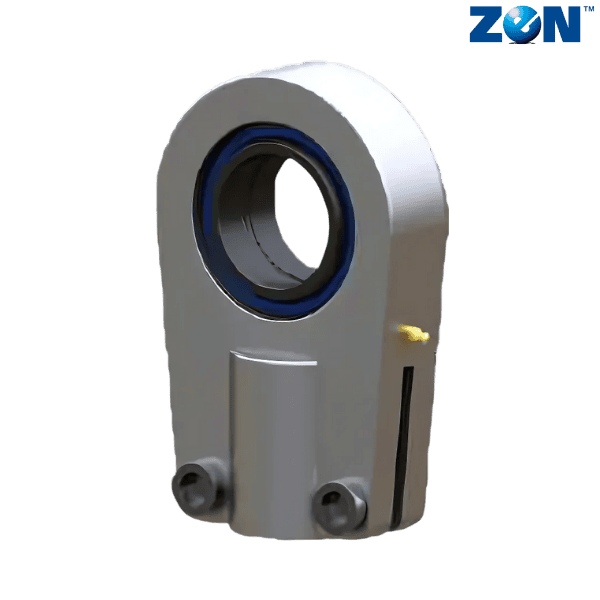

** Images are for representation purposes only
