Description
Brand - ZEN
Item Number - GIHRK30-UK-2RS ZEN
Category - Hydraulic Rod Ends

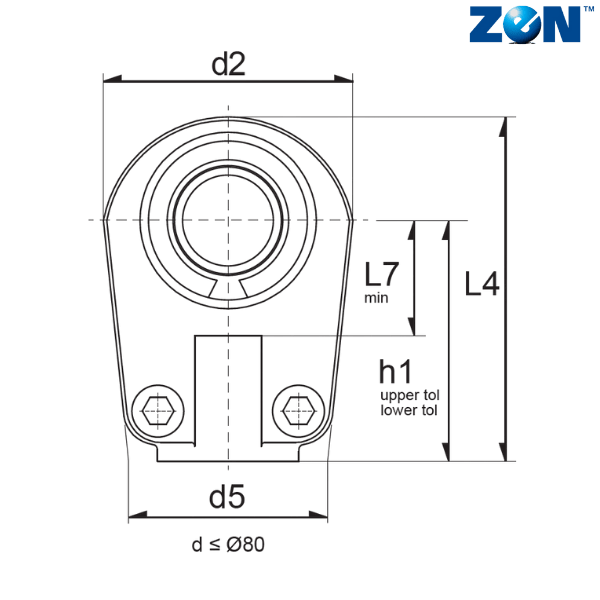

Inner Diameter (d) mm - 30
d2 (mm) - 64
L4 (mm) - 94
Width (B) mm - 22
C1 (mm) - 28
d1 (mm) - 34.2
d3 - M22x1.5
d4 (mm) - 32
d5 (mm) - 50
dk (mm) - 40.7
h1 (mm) - 60
L3 (mm) - 23
L7 (mm) - 30
α - 6
Weight (kg) - 0.74
Dynamic Load Rating (N) - 62000
Static Load Rating (N) - 106000
Notes :
2RS - Rubber Seals

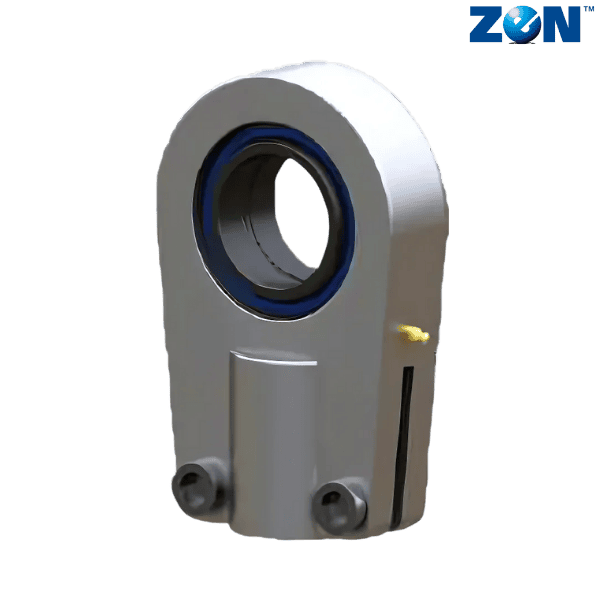

** Images are for representation purposes only
