Description
Brand - ZEN
Item Number - GIHRK25-DO ZEN
Category - Hydraulic Rod Ends

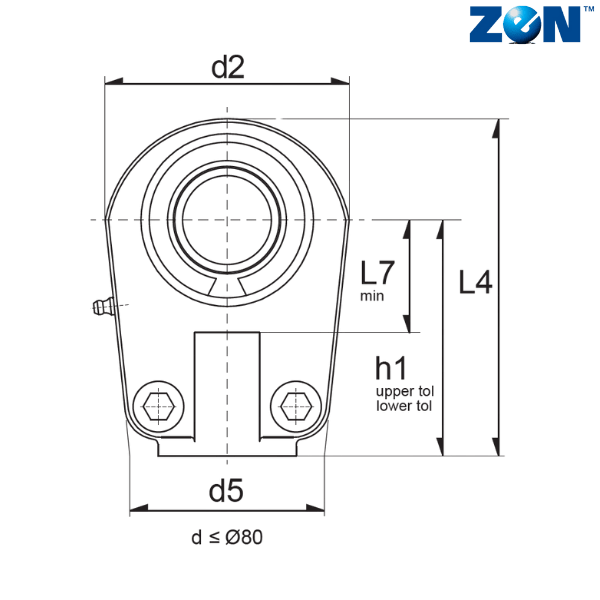

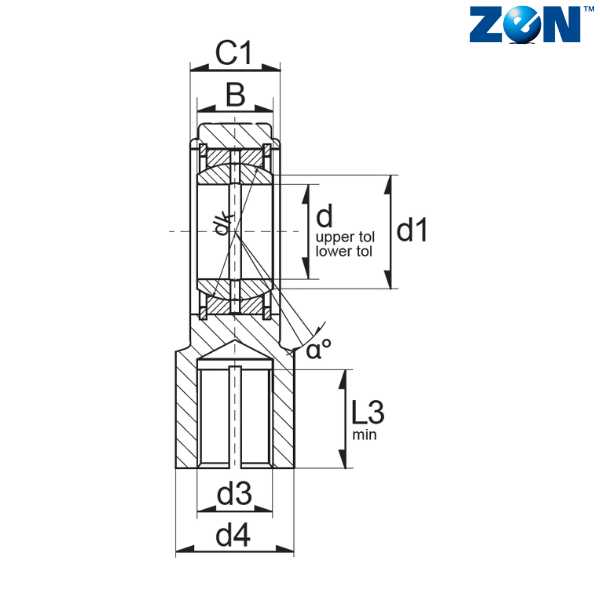

Inner Diameter (d) mm - 25
d2 (mm) - 56
L4 (mm) - 80
Width (B) mm - 20
C1 (mm) - 23
d1 (mm) - 29.3
d3 - M16x1.5
d4 (mm) - 25
d5 (mm) - 46
dk (mm) - 35.5
h1 (mm) - 50
L3 (mm) - 17
L7 (mm) - 28
α - 7
Weight (kg) - 0.48
Dynamic Load Rating (N) - 43470
Static Load Rating (N) - 58950

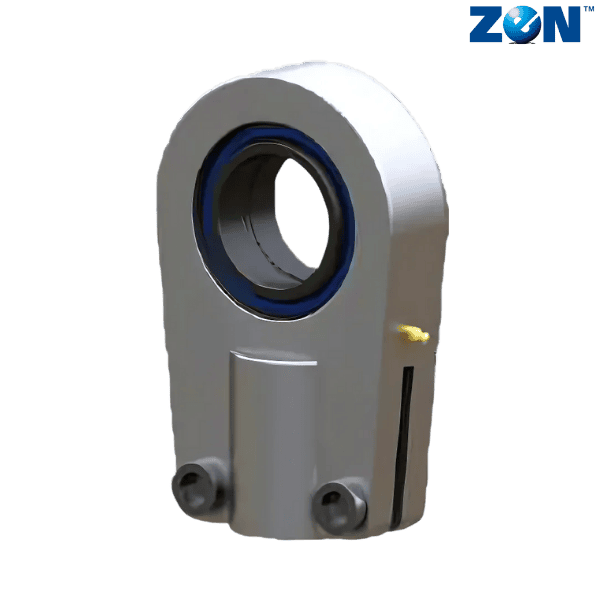

** Images are for representation purposes only
