Description
Brand - ZEN
Item Number - GIHRK20-DO ZEN
Category - Hydraulic Rod Ends

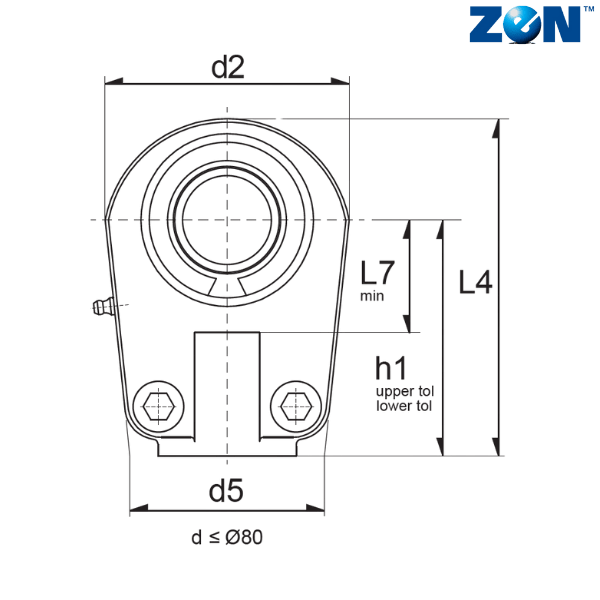

Inner Diameter (d) mm - 20
d2 (mm) - 56
L4 (mm) - 80
Width (B) mm - 16
C1 (mm) - 19
d1 (mm) - 24.2
d3 - M16x1.5
d4 (mm) - 25
d5 (mm) - 46
dk (mm) - 29
h1 (mm) - 50
L3 (mm) - 17
L7 (mm) - 25
α - 9
Weight (kg) - 0.43
Dynamic Load Rating (N) - 26640
Static Load Rating (N) - 72990

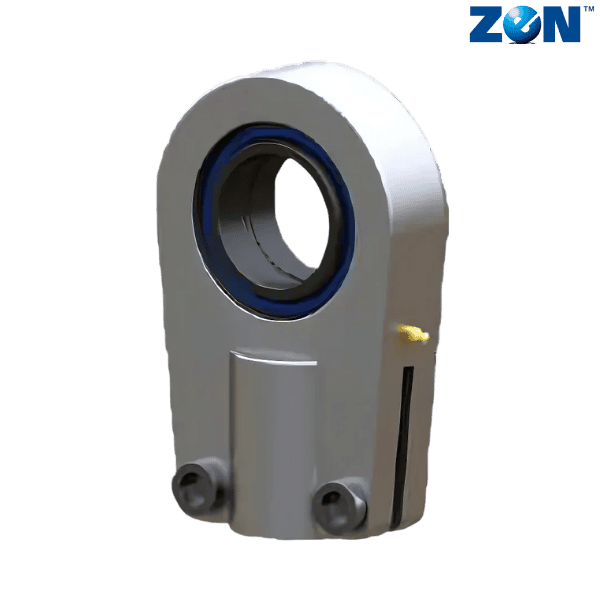

** Images are for representation purposes only
