Description
Brand - ZEN
Item Number - GIHRK100-UK-2RS ZEN
Category - Hydraulic Rod Ends

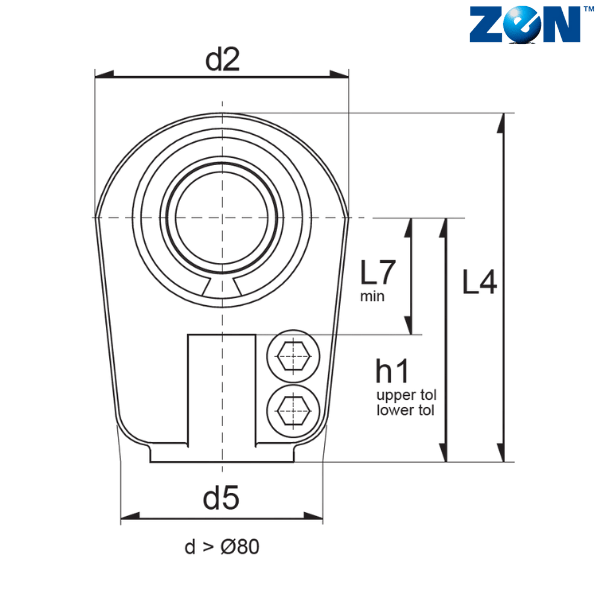

Inner Diameter (d) mm - 100
d2 (mm) - 231
L4 (mm) - 360
Width (B) mm - 70
C1 (mm) - 70
d1 (mm) - 109.5
d3 - M110x2.0
d4 (mm) - 138
d5 (mm) - 200
dk (mm) - 130
h1 (mm) - 235
L3 (mm) - 111
L7 (mm) - 105
α - 7
Weight (kg) - 27.5
Dynamic Load Rating (N) - 610000
Static Load Rating (N) - 1120000
Notes :
2RS - Rubber Seals

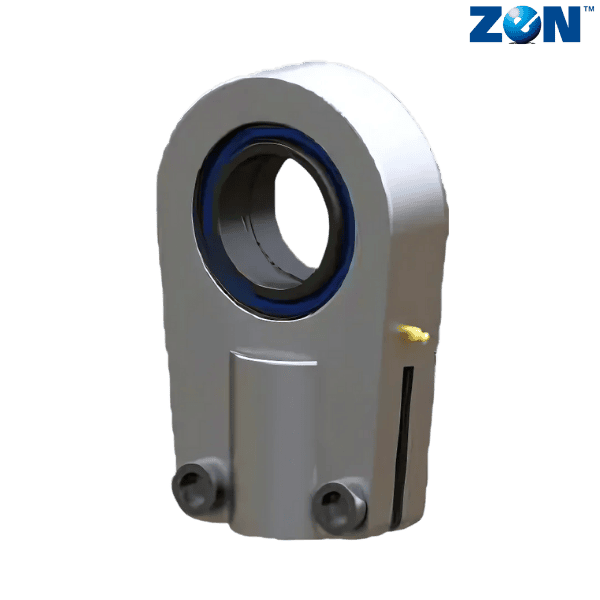

** Images are for representation purposes only
