Description
Brand - ZEN
Item Number - GIHNRK90-LO ZEN
Category - Hydraulic Rod Ends

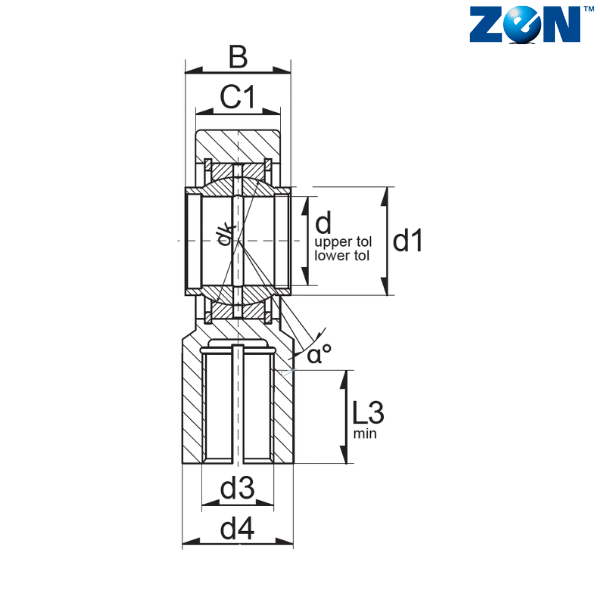

Inner Diameter (d) mm - 90
d2 (mm) - 185
L4 (mm) - 296
Width (B) mm - 90
C1 (mm) - 72
C2 (mm) - 52
D (mm) - 130
d1 (mm) - 99
d3 - M72X3
d4 (mm) - 100
d5 (mm) - 160
d6 - M16X50
dk (mm) - 115
h1 (mm) - 195
L3 (mm) - 91
L7 (mm) - 85
r1 (mm) - 1
α - 4
Weight (kg) - 17
Dynamic Load Rating (N) - 440100
Static Load Rating (N) - 594000
Torque (Nm) - 195
Nominal Cylinder Fz - 400000
Radial Clearance - 0.055-0.142

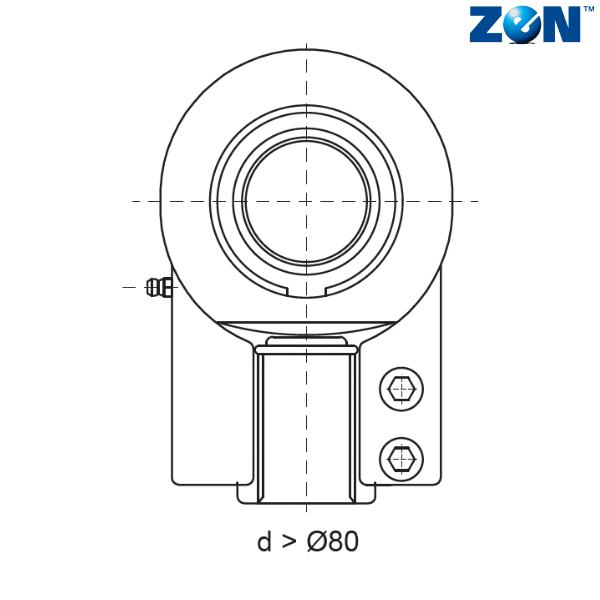

** Images are for representation purposes only
