Description

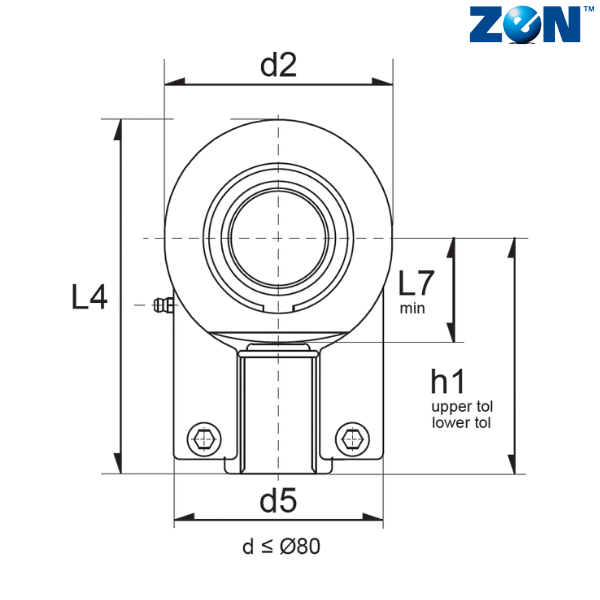

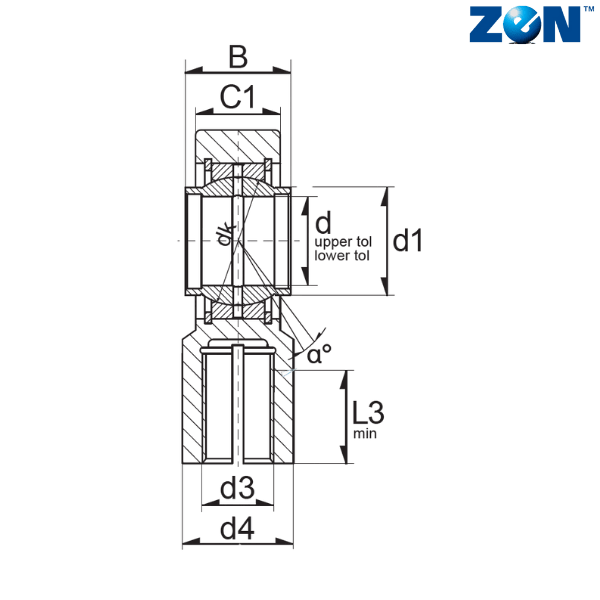

Brand - ZEN
Item Number - GIHNRK80-LO ZEN
Category - Hydraulic Rod Ends
Inner Diameter (d) mm - 80
d2 (mm) - 168
L4 (mm) - 270
Width (B) mm - 80
C1 (mm) - 66
C2 (mm) - 48
D (mm) - 120
d1 (mm) - 91
d3 - M64X3
d4 (mm) - 90
d5 (mm) - 148
d6 - M16X45
dk (mm) - 105
h1 (mm) - 180
L3 (mm) - 86
L7 (mm) - 78
r1 (mm) - 1
α - 4
Weight (kg) - 13
Dynamic Load Rating (N) - 361800
Static Load Rating (N) - 475200
Torque (Nm) - 195
Nominal Cylinder Fz - 320000
Radial Clearance - 0.055-0.142
** Images are for representation purposes only
