Description
Brand - ZEN
Item Number - GIHNRK70-LO ZEN
Category - Hydraulic Rod Ends

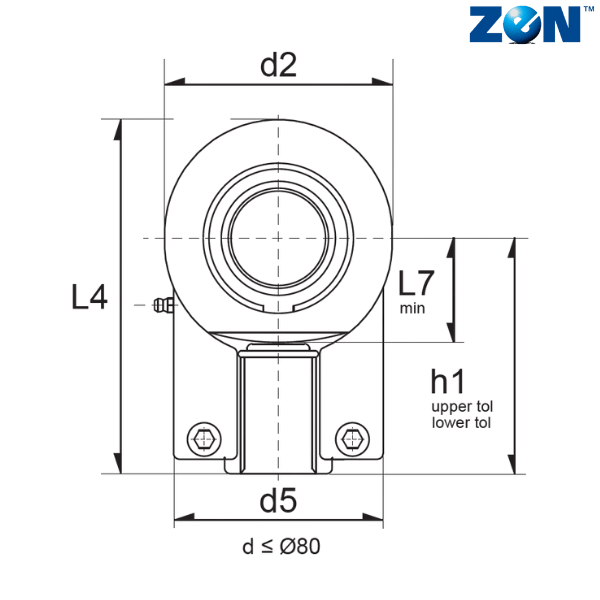

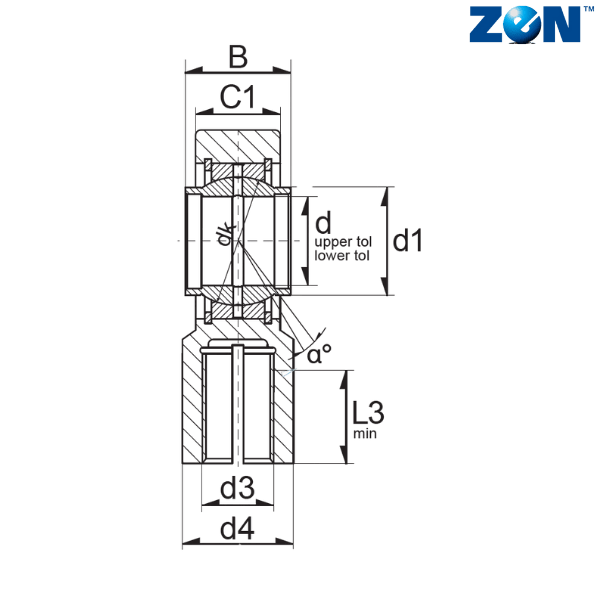

Inner Diameter (d) mm - 70
d2 (mm) - 155
L4 (mm) - 245
Width (B) mm - 70
C1 (mm) - 57
C2 (mm) - 42
D (mm) - 105
d1 (mm) - 79
d3 - M56X2
d4 (mm) - 80
d5 (mm) - 135
d6 - M16X40
dk (mm) - 92
h1 (mm) - 160
L3 (mm) - 76
L7 (mm) - 70
r1 (mm) - 1
α - 4
Weight (kg) - 9.75
Dynamic Load Rating (N) - 281700
Static Load Rating (N) - 427500
Torque (Nm) - 195
Nominal Cylinder Fz - 250000
Radial Clearance - 0.055-0.142
** Images are for representation purposes only
