Description
Brand - ZEN
Item Number - GIHNRK63-LO ZEN
Category - Hydraulic Rod Ends

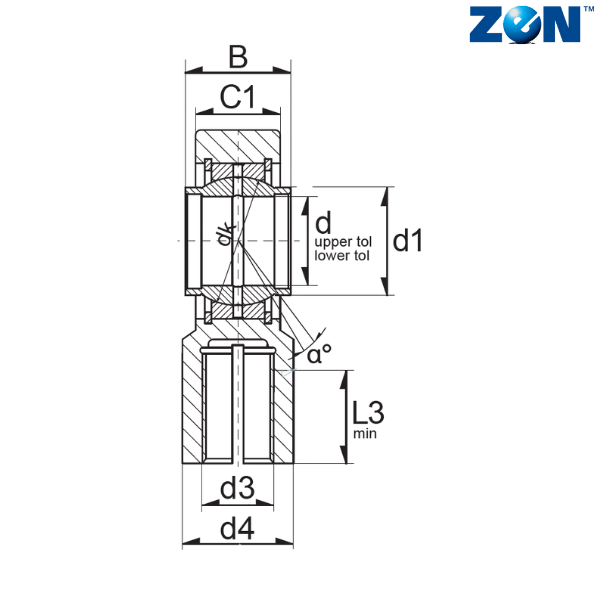

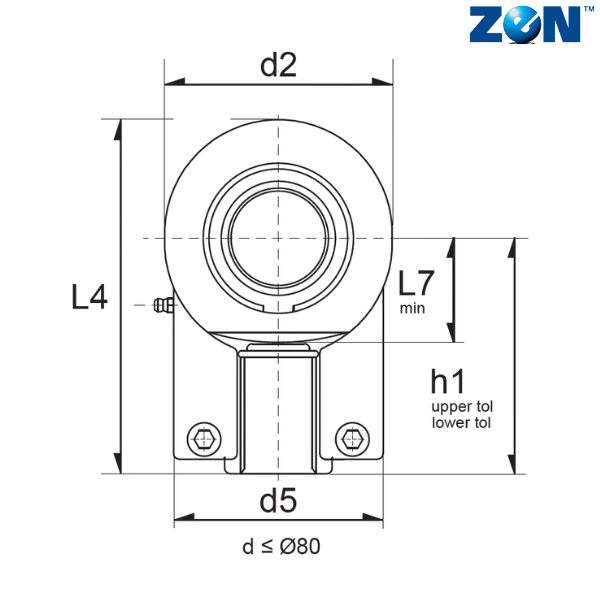

Inner Diameter (d) mm - 63
d2 (mm) - 132
L4 (mm) - 211
Width (B) mm - 63
C1 (mm) - 52
C2 (mm) - 38
D (mm) - 95
d1 (mm) - 71.5
d3 - M48X2
d4 (mm) - 70
d5 (mm) - 114
d6 - M12X35
dk (mm) - 83
h1 (mm) - 140
L3 (mm) - 64
L7 (mm) - 62
r1 (mm) - 1
α - 4
Weight (kg) - 6.29
Dynamic Load Rating (N) - 228600
Static Load Rating (N) - 288900
Torque (Nm) - 80
Nominal Cylinder Fz - 200000
Radial Clearance - 0.055-0.142
** Images are for representation purposes only
