Description
Brand - ZEN
Item Number - GIHNRK50-LO ZEN
Category - Hydraulic Rod Ends

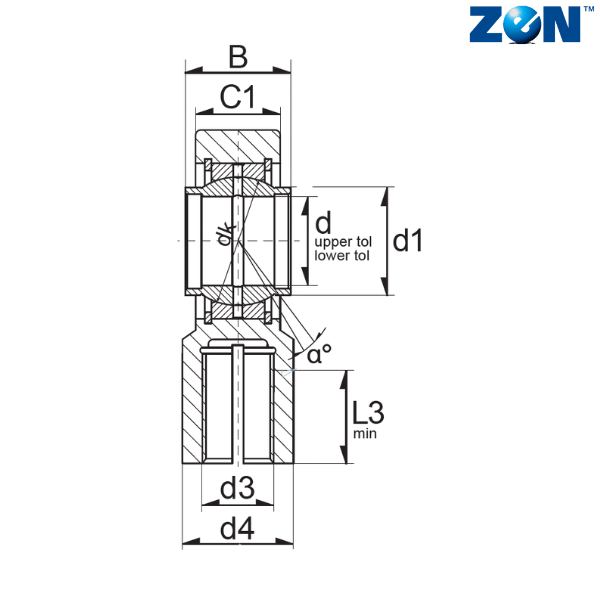

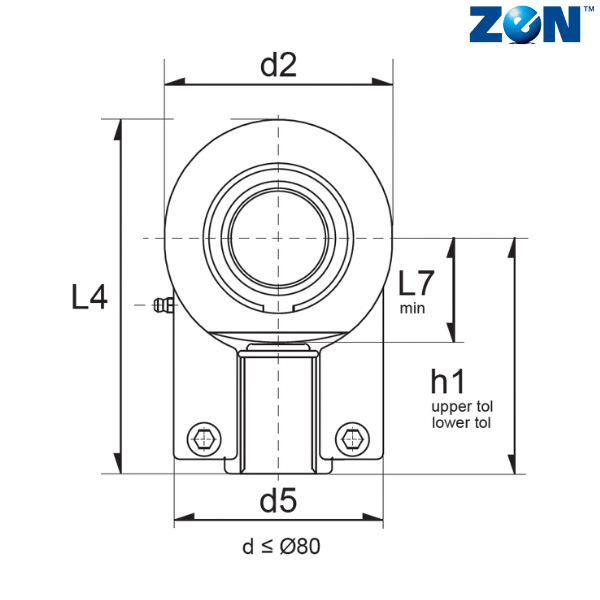

Inner Diameter (d) mm - 50
d2 (mm) - 108
L4 (mm) - 174
Width (B) mm - 50
C1 (mm) - 40
C2 (mm) - 32
D (mm) - 75
d1 (mm) - 57
d3 - M42X2
d4 (mm) - 58
d5 (mm) - 96
d6 - M12X30
dk (mm) - 66
h1 (mm) - 120
L3 (mm) - 57
L7 (mm) - 50
r1 (mm) - 0.6
α - 4
Weight (kg) - 3.49
Dynamic Load Rating (N) - 141300
Static Load Rating (N) - 241200
Torque (Nm) - 110
Nominal Cylinder Fz - 125000
Radial Clearance - 0.043-0.12
** Images are for representation purposes only
