Description
Brand - ZEN
Item Number - GIHNRK40-LO ZEN
Category - Hydraulic Rod Ends

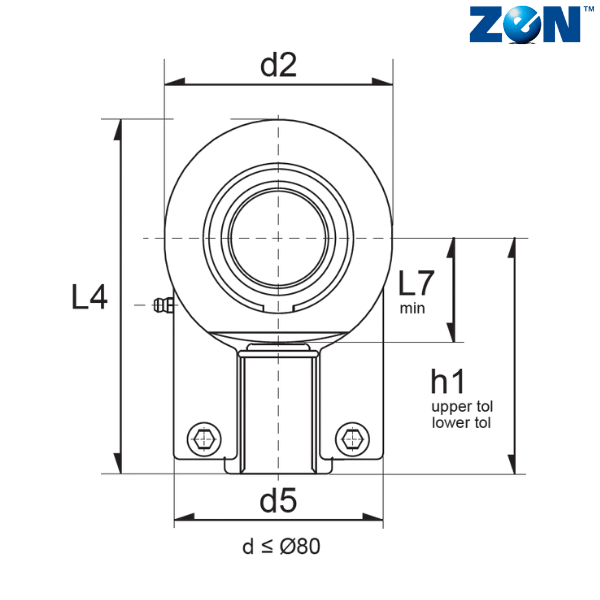

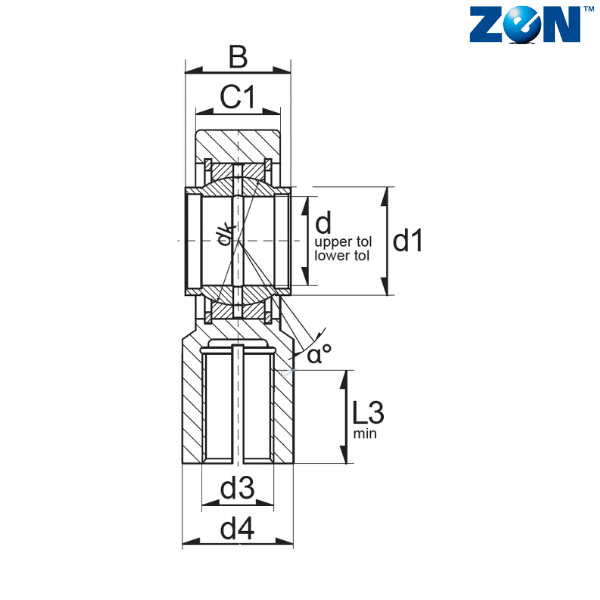

Inner Diameter (d) mm - 40
d2 (mm) - 89
L4 (mm) - 141.5
Width (B) mm - 40
C1 (mm) - 32
C2 (mm) - 26
D (mm) - 62
d1 (mm) - 46
d3 - M33X2
d4 (mm) - 47
d5 (mm) - 80
d6 - M10X25
dk (mm) - 53
h1 (mm) - 97
L3 (mm) - 46
L7 (mm) - 41
r1 (mm) - 0.6
α - 4
Weight (kg) - 1.93
Dynamic Load Rating (N) - 89190
Static Load Rating (N) - 158400
Torque (Nm) - 64
Nominal Cylinder Fz - 80000
Radial Clearance - 0.043-0.12
** Images are for representation purposes only
