Description
Brand - ZEN
Item Number - GIHNRK32-LO ZEN
Category - Hydraulic Rod Ends

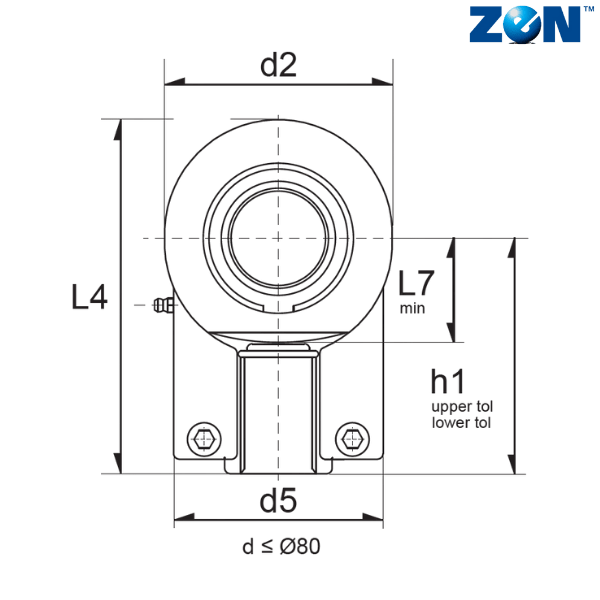

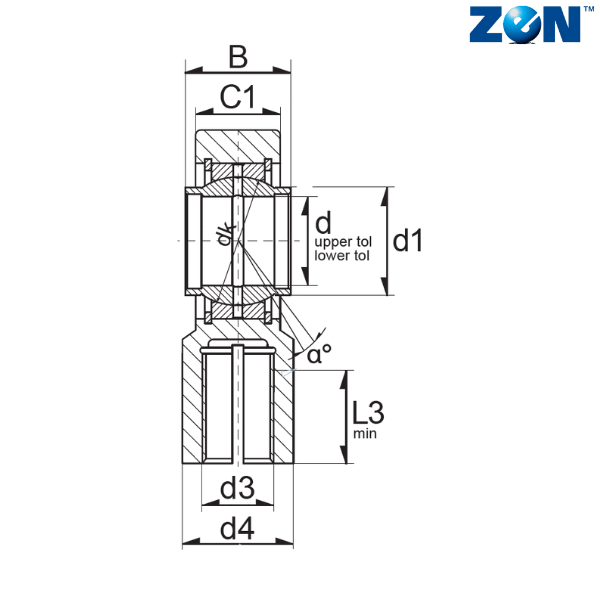

Inner Diameter (d) mm - 32
d2 (mm) - 70
L4 (mm) - 115
Width (B) mm - 32
C1 (mm) - 27
C2 (mm) - 22
D (mm) - 52
d1 (mm) - 38
d3 - M27X2
d4 (mm) - 38
d5 (mm) - 66
d6 - M10X25
dk (mm) - 44
h1 (mm) - 80
L3 (mm) - 37
L7 (mm) - 32
r1 (mm) - 0.6
α - 4
Weight (kg) - 1.06
Dynamic Load Rating (N) - 60570
Static Load Rating (N) - 88920
Torque (Nm) - 64
Nominal Cylinder Fz - 50000
Radial Clearance - 0.037-0.10
** Images are for representation purposes only
