Description
Brand - ZEN
Item Number - GIHNRK25-LO ZEN
Category - Hydraulic Rod Ends

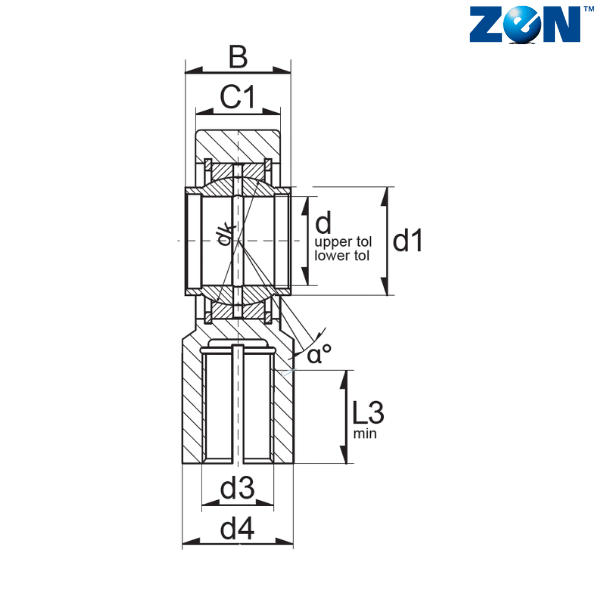

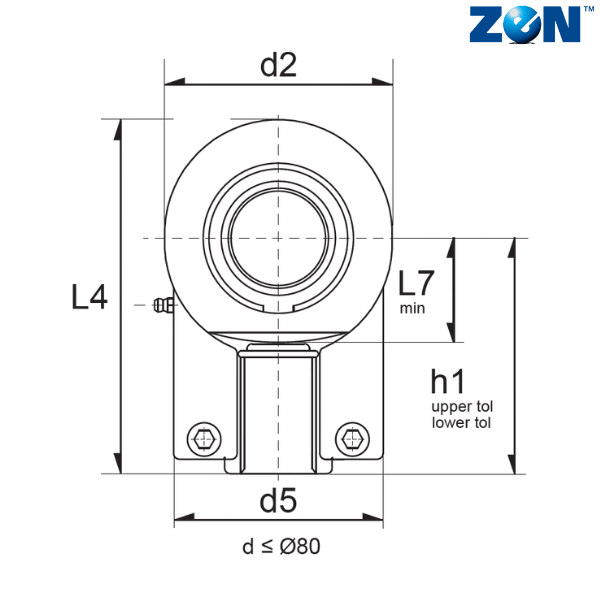

Inner Diameter (d) mm - 25
d2 (mm) - 58
L4 (mm) - 94
Width (B) mm - 25
C1 (mm) - 21.5
C2 (mm) - 17
D (mm) - 42
d1 (mm) - 30
d3 - M20X1.5
d4 (mm) - 30
d5 (mm) - 54
d6 - M8X20
dk (mm) - 35.5
h1 (mm) - 65
L3 (mm) - 29
L7 (mm) - 27
r1 (mm) - 0.6
α - 4
Weight (kg) - 0.59
Dynamic Load Rating (N) - 43470
Static Load Rating (N) - 62910
Torque (Nm) - 32
Nominal Cylinder Fz - 32000
Radial Clearance - 0.037-0.10
** Images are for representation purposes only
