Description
Brand - ZEN
Item Number - GIHNRK20-LO ZEN
Category - Hydraulic Rod Ends

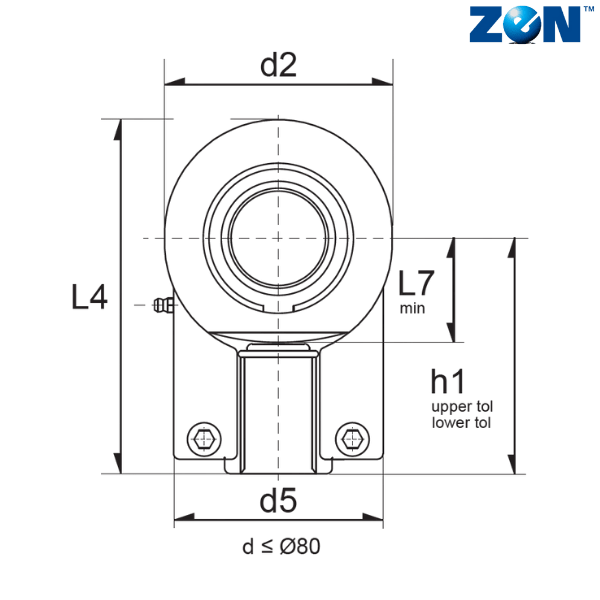

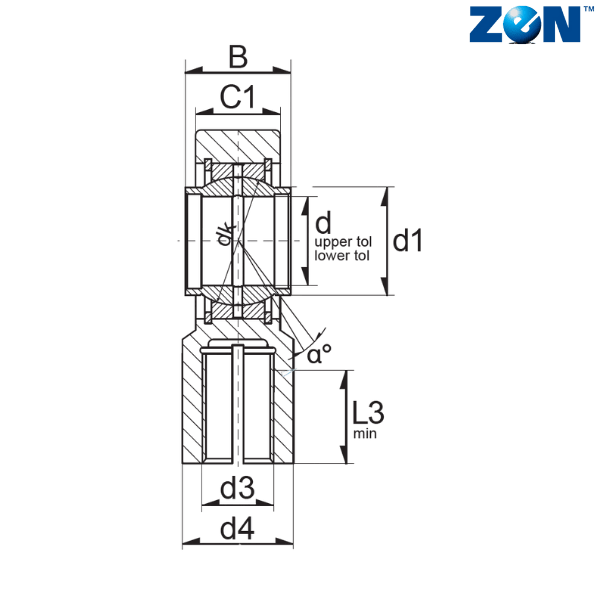

Inner Diameter (d) mm - 20
d2 (mm) - 47
L4 (mm) - 75.5
Width (B) mm - 20
C1 (mm) - 17
C2 (mm) - 17
D (mm) - 35
d1 (mm) - 25
d3 - M16X1.5
d4 (mm) - 25
d5 (mm) - 47
d6 - M8X20
dk (mm) - 29
h1 (mm) - 52
L3 (mm) - 23
L7 (mm) - 22
r1 (mm) - 0.3
α - 4
Weight (kg) - 0.36
Dynamic Load Rating (N) - 26640
Static Load Rating (N) - 37350
Torque (Nm) - 32
Nominal Cylinder Fz - 20000
Radial Clearance - 0.030-0.082
** Images are for representation purposes only
