Description
Brand - ZEN
Item Number - GIHNRK16-LO ZEN
Category - Hydraulic Rod Ends

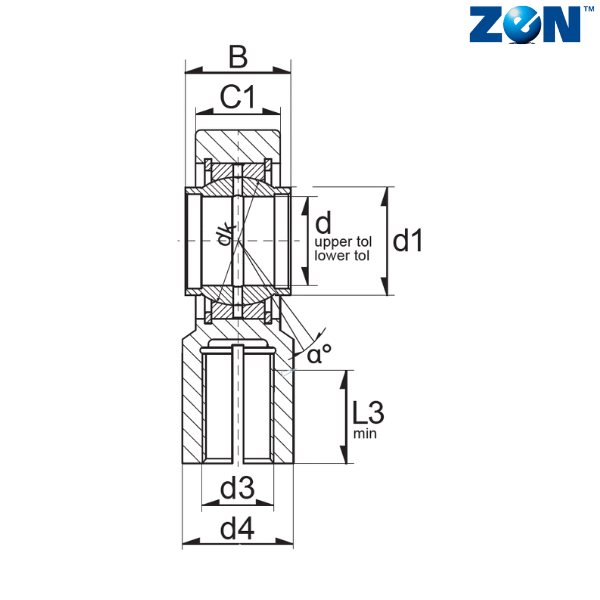

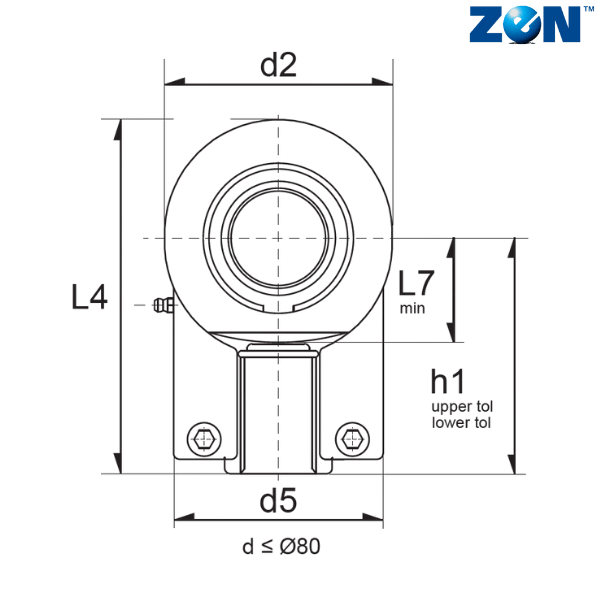

Inner Diameter (d) mm - 16
d2 (mm) - 40
L4 (mm) - 64
Width (B) mm - 16
C1 (mm) - 13
C2 (mm) - 13
D (mm) - 28
d1 (mm) - 20
d3 - M14X1.5
d4 (mm) - 21
d5 (mm) - 40
d6 - M6X16
dk (mm) - 23
h1 (mm) - 44
L3 (mm) - 19
L7 (mm) - 18
r1 (mm) - 0.3
α - 4
Weight (kg) - 0.2
Dynamic Load Rating (N) - 15930
Static Load Rating (N) - 31860
Torque (Nm) - 13
Nominal Cylinder Fz - 12500
Radial Clearance - 0.030-0.082
** Images are for representation purposes only
