Description
Brand - ZEN
Item Number - GIHNRK12-LO ZEN
Category - Hydraulic Rod Ends

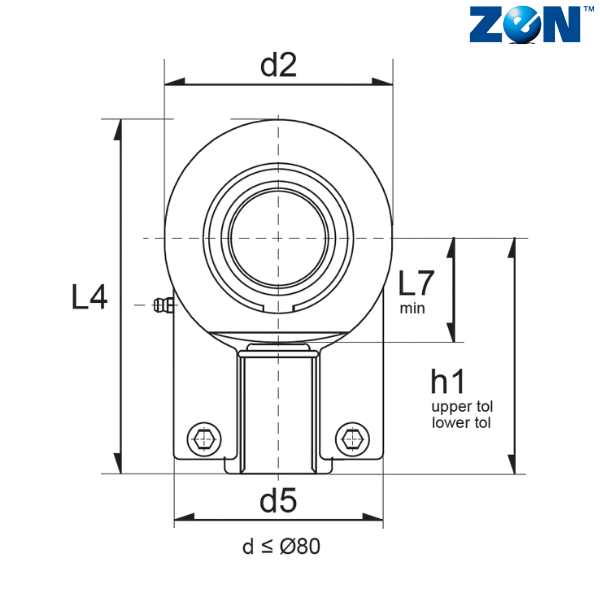

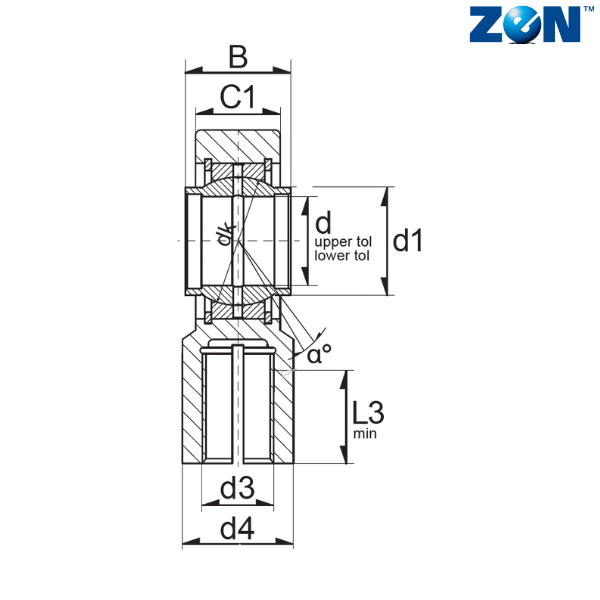

Inner Diameter (d) mm - 12
d2 (mm) - 32
L4 (mm) - 54
Width (B) mm - 12
C1 (mm) - 10.6
C2 (mm) - 10.6
D (mm) - 22
d1 (mm) - 15.5
d3 - M12X1.25
d4 (mm) - 16.5
d5 (mm) - 32
d6 - M5X12
dk (mm) - 18
h1 (mm) - 38
L3 (mm) - 17
L7 (mm) - 14
r1 (mm) - 0.3
α - 4
Weight (kg) - 0.11
Dynamic Load Rating (N) - 9720
Static Load Rating (N) - 21600
Torque (Nm) - 8
Nominal Cylinder Fz - 8000
Radial Clearance - 0.023-0.068
** Images are for representation purposes only
