Description
Brand - ZEN

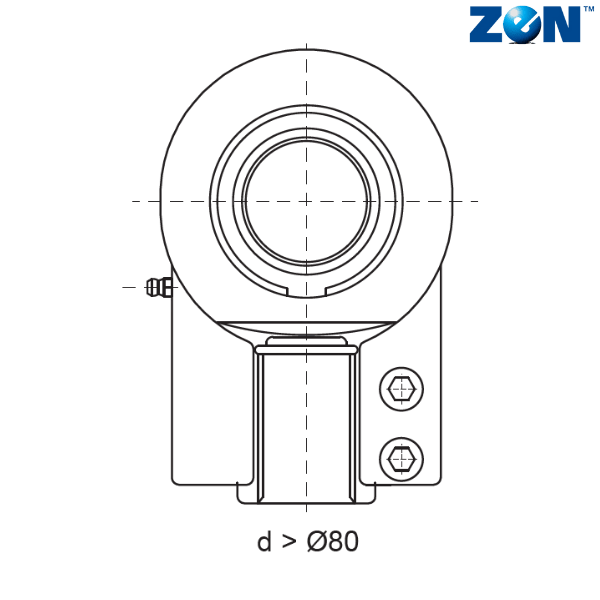

Item Number - GIHNRK100-LO ZEN
Category - Hydraulic Rod Ends

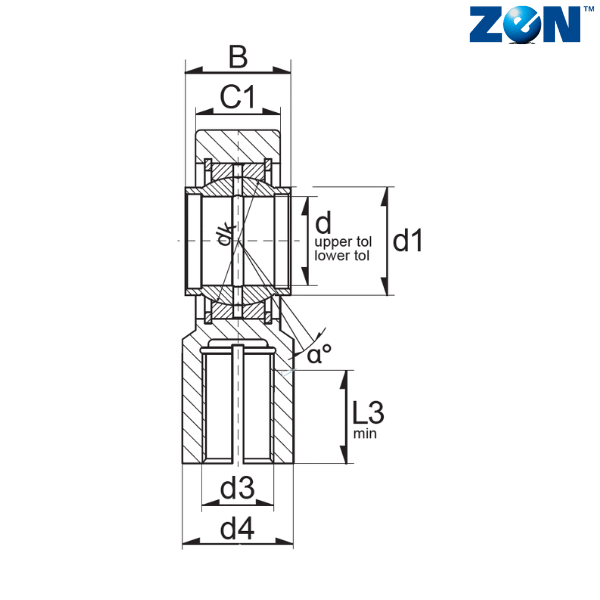

Inner Diameter (d) mm - 100
d2 (mm) - 210
L4 (mm) - 322
Width (B) mm - 100
C1 (mm) - 84
C2 (mm) - 62
D (mm) - 150
d1 (mm) - 113
d3 - M80X3
d4 (mm) - 110
d5 (mm) - 178
d6 - M20X60
dk (mm) - 130
h1 (mm) - 210
L3 (mm) - 96
L7 (mm) - 98
r1 (mm) - 1
α - 4
Weight (kg) - 23.8
Dynamic Load Rating (N) - 547200
Static Load Rating (N) - 756000
Torque (Nm) - 385
Nominal Cylinder Fz - 500000
Radial Clearance - 0.065-0.165
** Images are for representation purposes only
