Description
Brand - ZEN
Item Number - GF80-DO ZEN
Category - Hydraulic Rod Ends

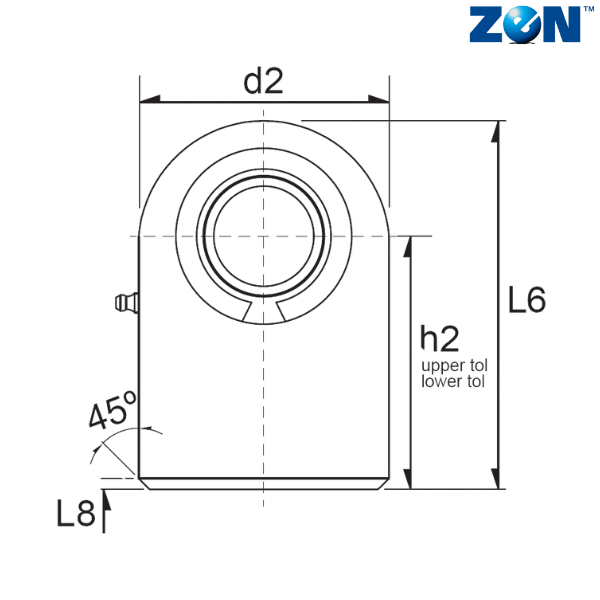

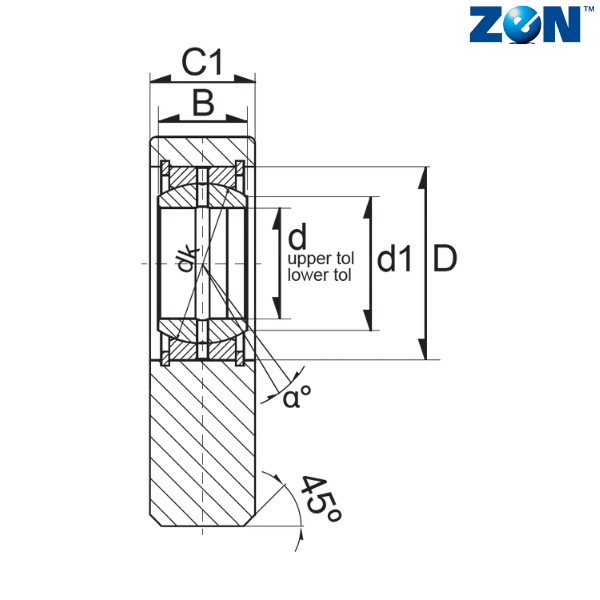

Inner Diameter (d) mm - 80
d2 (mm) - 180
L6 (mm) - 231
Width (B) mm - 55
C1 (mm) - 60
Maximum C1 (mm) - 63
D (mm) - 120
d1 (mm) - 89.4
dk (mm) - 105
h2 (mm) - 141
R1 (mm) - 1
α - 6
Weight (kg) - 15
Dynamic Load Rating (N) - 361800
Static Load Rating (N) - 723600
Radial Clearance - 0.055-0.142

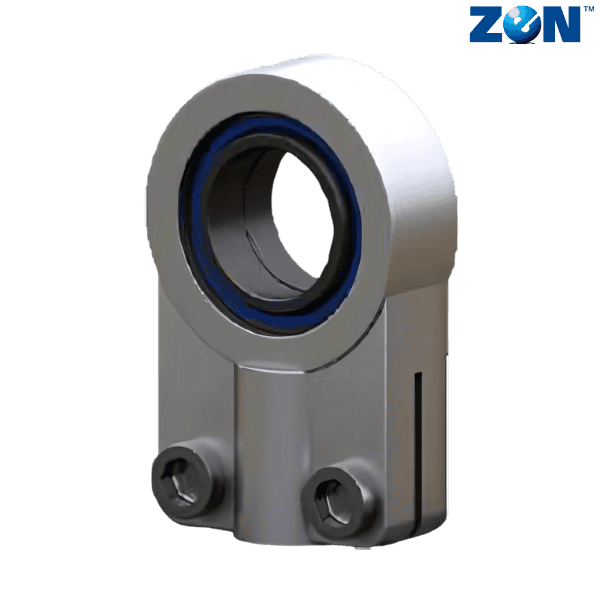

** Images are for representation purposes only
