Description
Brand - ZEN
Item Number - GF70-DO ZEN
Category - Hydraulic Rod Ends

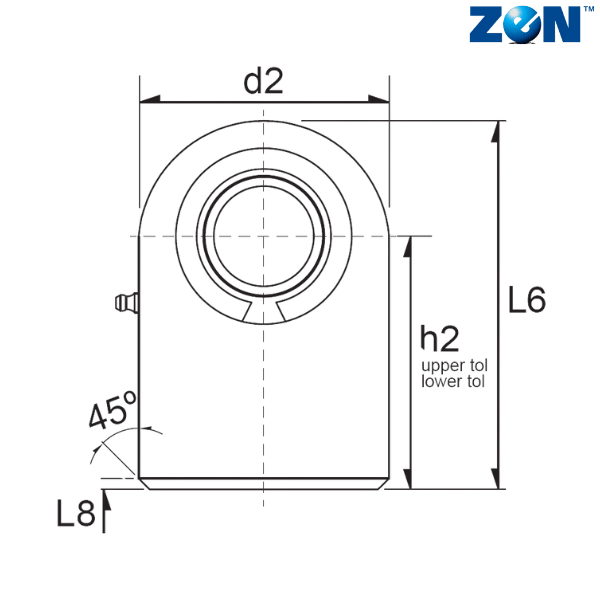

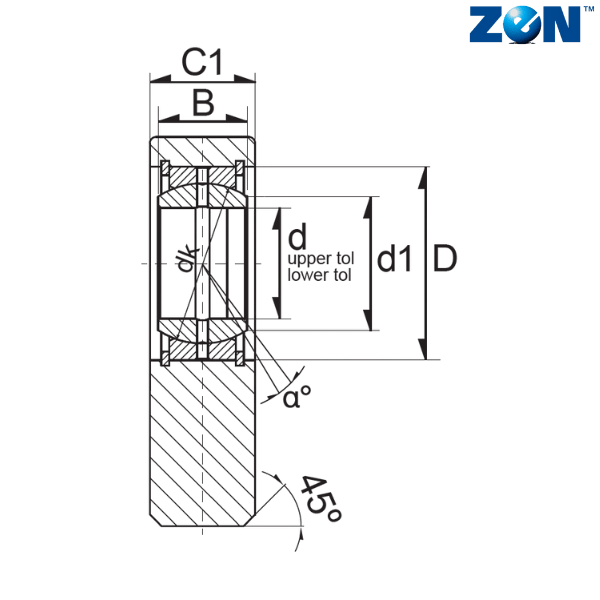

Inner Diameter (d) mm - 70
d2 (mm) - 164
L6 (mm) - 197
Width (B) mm - 49
C1 (mm) - 55
Maximum C1 (mm) - 58
D (mm) - 105
d1 (mm) - 77.9
dk (mm) - 92
h2 (mm) - 115
R1 (mm) - 1
α - 6
Weight (kg) - 10.5
Dynamic Load Rating (N) - 281700
Static Load Rating (N) - 652500
Radial Clearance - 0.055-0.142

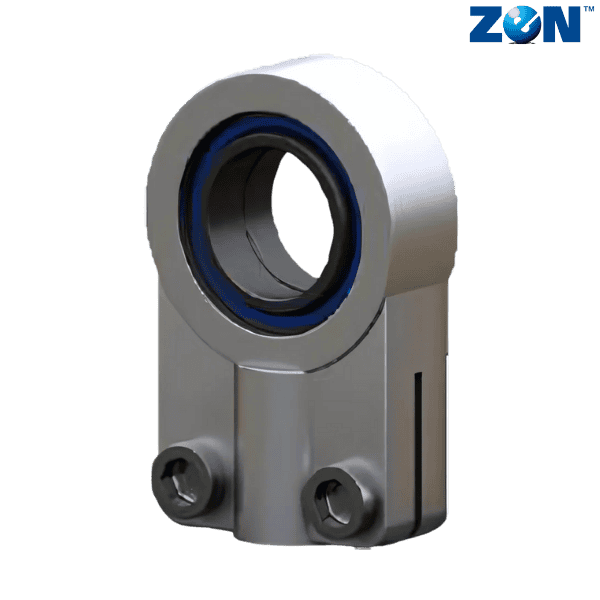

** Images are for representation purposes only
