Description
Brand - ZEN
Item Number - GF60-DO ZEN
Category - Hydraulic Rod Ends

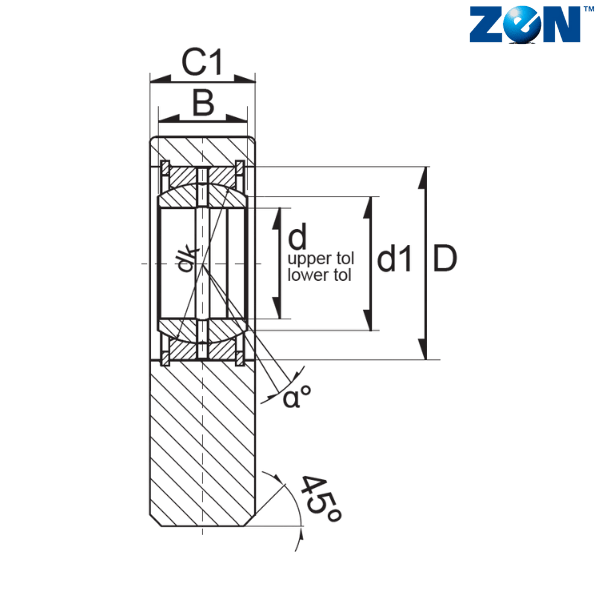

Inner Diameter (d) mm - 60

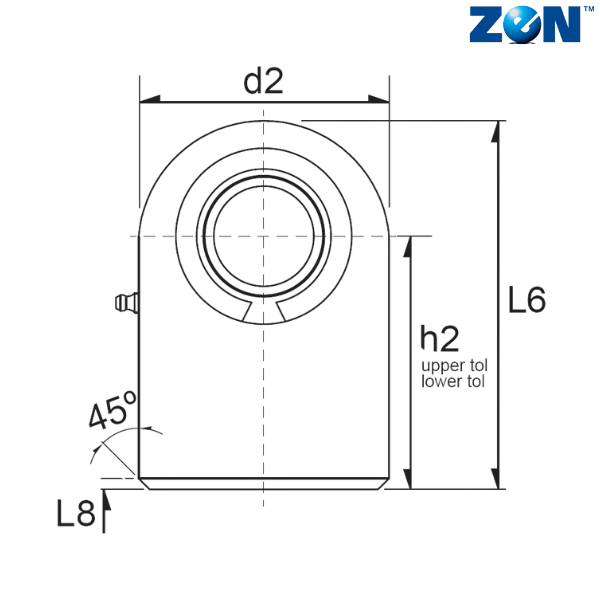

d2 (mm) - 140
L6 (mm) - 170
Width (B) mm - 44
C1 (mm) - 50
Maximum C1 (mm) - 52.5
D (mm) - 90
d1 (mm) - 66.8
dk (mm) - 80
h2 (mm) - 100
R1 (mm) - 1
α - 6
Weight (kg) - 7.1
Dynamic Load Rating (N) - 220500
Static Load Rating (N) - 502200
Radial Clearance - 0.043-0.12

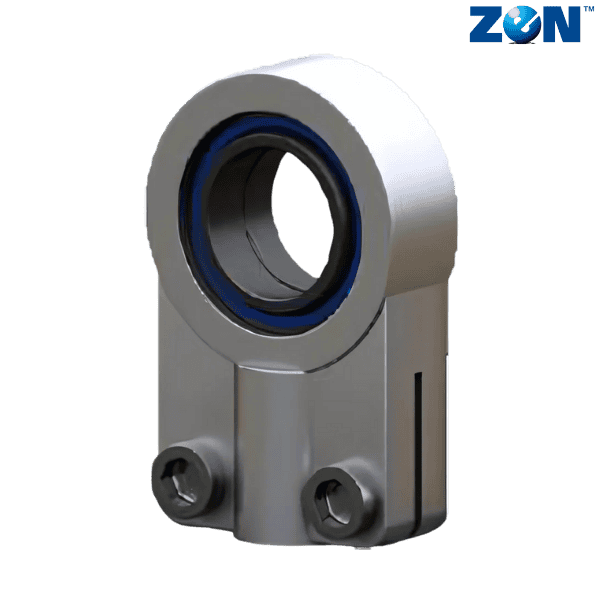

** Images are for representation purposes only
