Description
Brand - ZEN
Item Number - GF50-DO ZEN
Category - Hydraulic Rod Ends

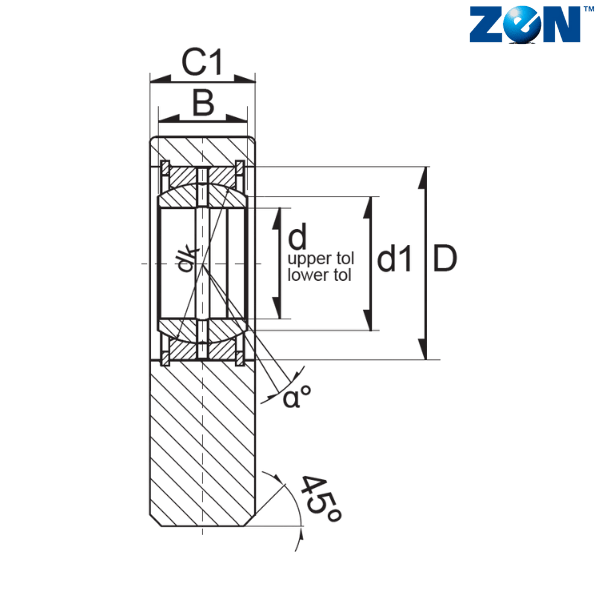

Inner Diameter (d) mm - 50

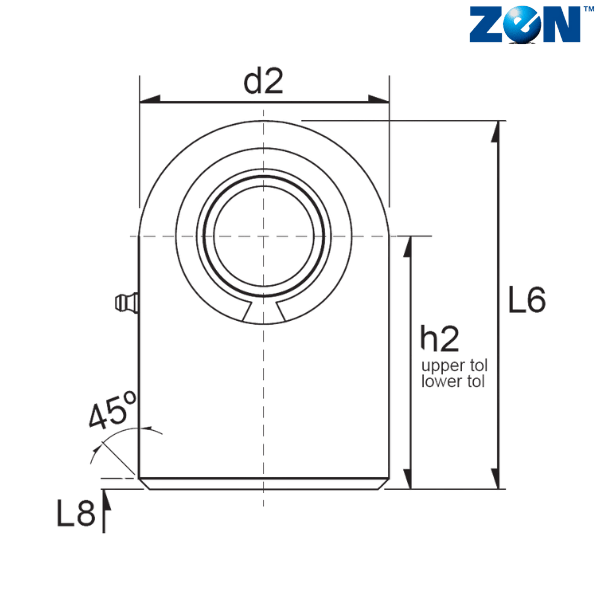

d2 (mm) - 123
L6 (mm) - 149.5
Width (B) mm - 35
C1 (mm) - 40
Maximum C1 (mm) - 41.5
D (mm) - 75
d1 (mm) - 56
dk (mm) - 66
h2 (mm) - 88
R1 (mm) - 0.6
α - 6
Weight (kg) - 4.4
Dynamic Load Rating (N) - 141300
Static Load Rating (N) - 397800
Radial Clearance - 0.043-0.12

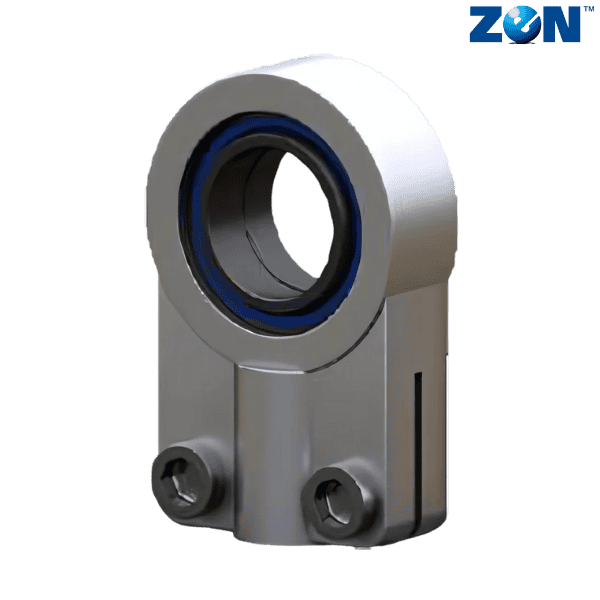

** Images are for representation purposes only
