Description
Brand - ZEN
Item Number - GF45-DO ZEN
Category - Hydraulic Rod Ends

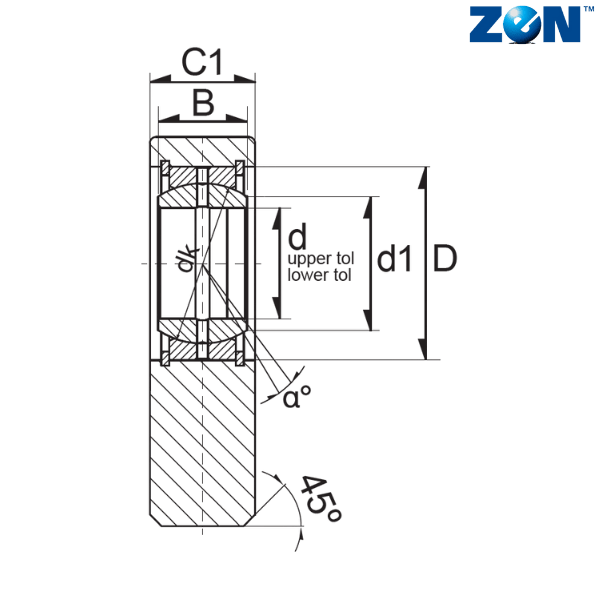

Inner Diameter (d) mm - 45

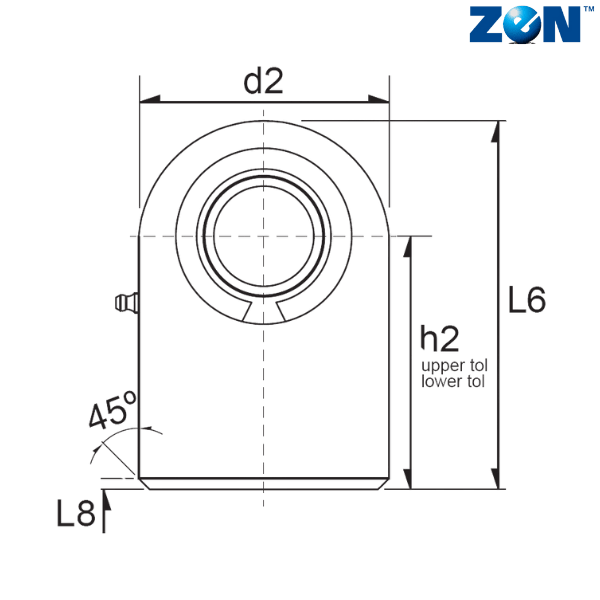

d2 (mm) - 110
L6 (mm) - 132
Width (B) mm - 32
C1 (mm) - 40
Maximum C1 (mm) - 41.5
D (mm) - 68
d1 (mm) - 50.8
dk (mm) - 60
h2 (mm) - 77
R1 (mm) - 0.6
α - 7
Weight (kg) - 3.4
Dynamic Load Rating (N) - 115200
Static Load Rating (N) - 347400
Radial Clearance - 0.043-0.12

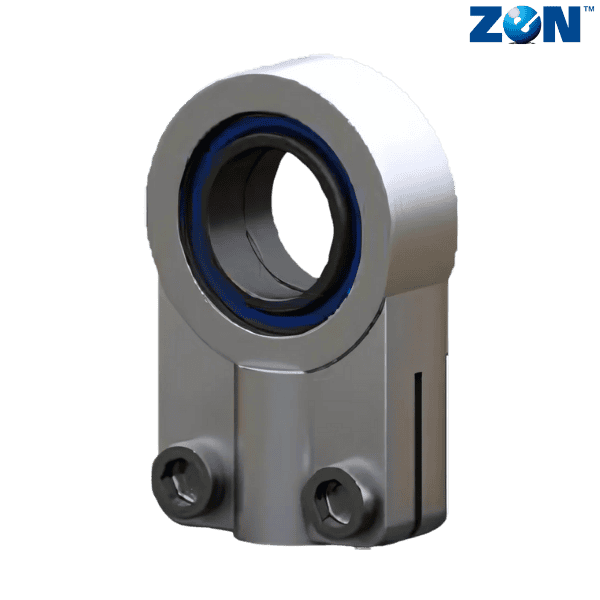

** Images are for representation purposes only
