Description
Brand - ZEN
Item Number - GF40-DO ZEN
Category - Hydraulic Rod Ends

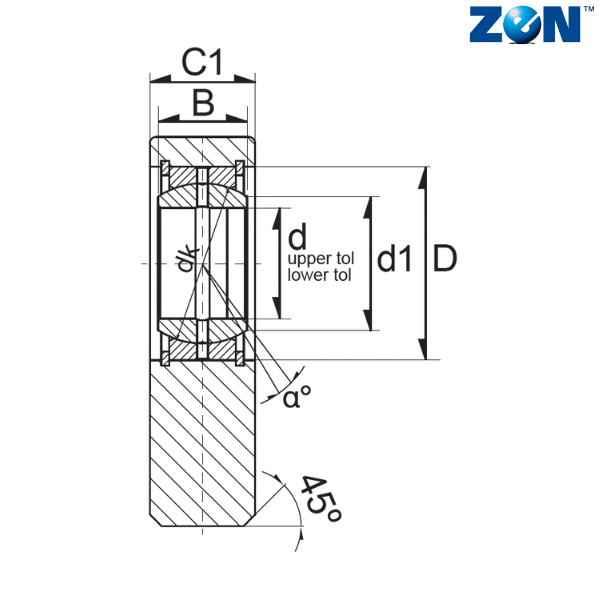

Inner Diameter (d) mm - 40

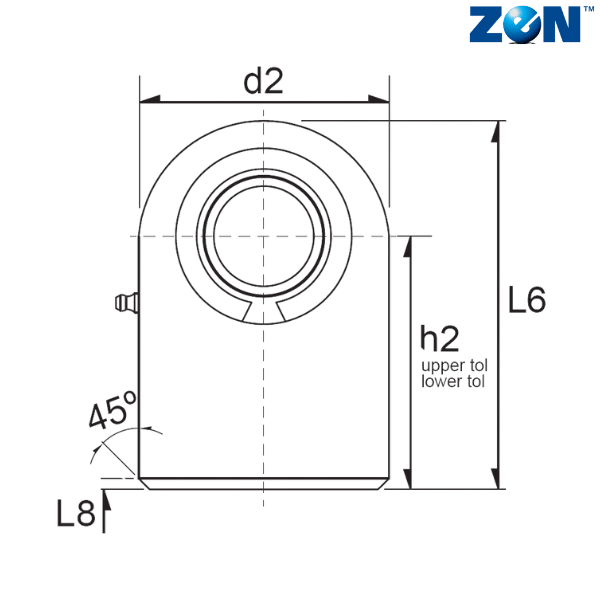

d2 (mm) - 100
L6 (mm) - 119
Width (B) mm - 28
C1 (mm) - 35
Maximum C1 (mm) - 36.5
D (mm) - 62
d1 (mm) - 45
dk (mm) - 53
h2 (mm) - 69
R1 (mm) - 0.6
α - 7
Weight (kg) - 2.4
Dynamic Load Rating (N) - 89190
Static Load Rating (N) - 275400
Radial Clearance - 0.043-0.12

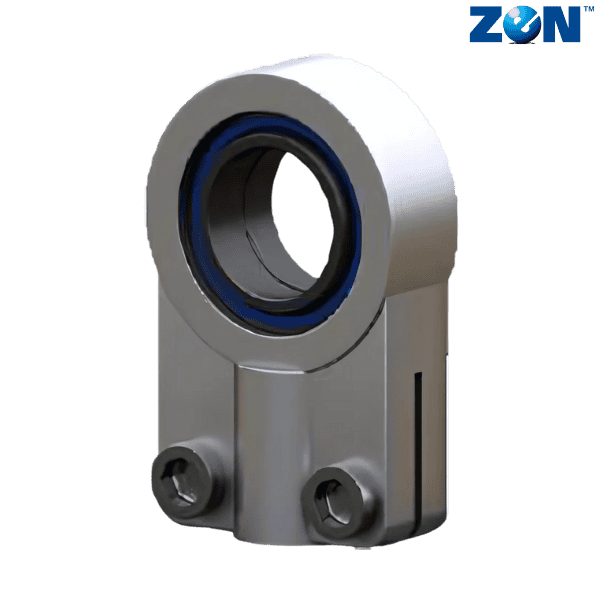

** Images are for representation purposes only
