Description
Brand - ZEN

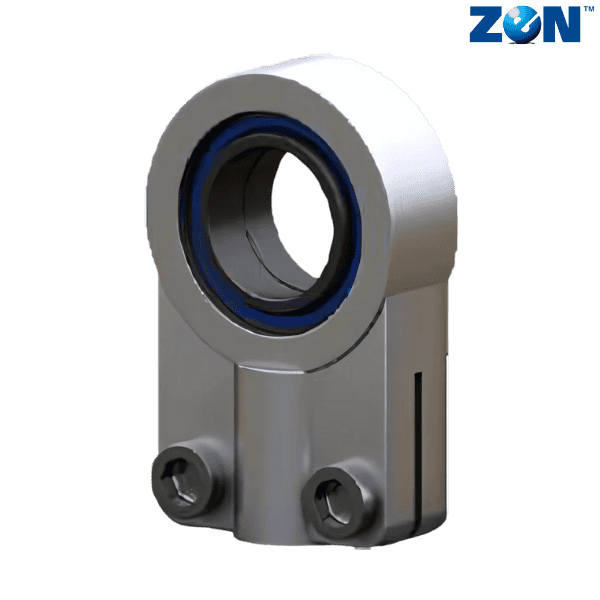

Item Number - GF35-DO ZEN
Category - Hydraulic Rod Ends

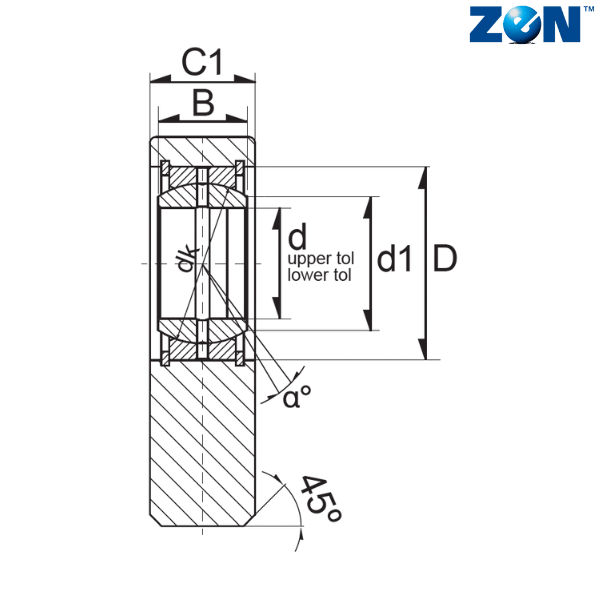

Inner Diameter (d) mm - 35

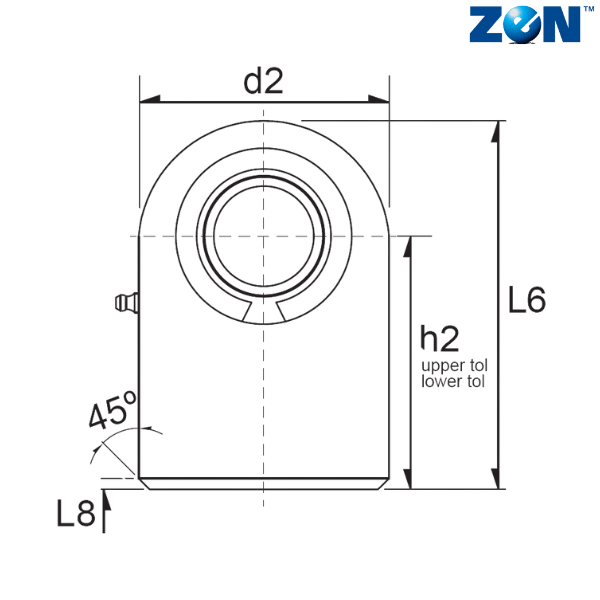

d2 (mm) - 83
L6 (mm) - 102.5
Width (B) mm - 25
C1 (mm) - 30
Maximum C1 (mm) - 31
D (mm) - 55
d1 (mm) - 39.8
dk (mm) - 47
h2 (mm) - 61
R1 (mm) - 0.6
α - 6
Weight (kg) - 1.5
Dynamic Load Rating (N) - 71910
Static Load Rating (N) - 173700
Radial Clearance - 0.037-0.10
** Images are for representation purposes only
