Description
Brand - ZEN
Item Number - GF30-DO ZEN
Category - Hydraulic Rod Ends

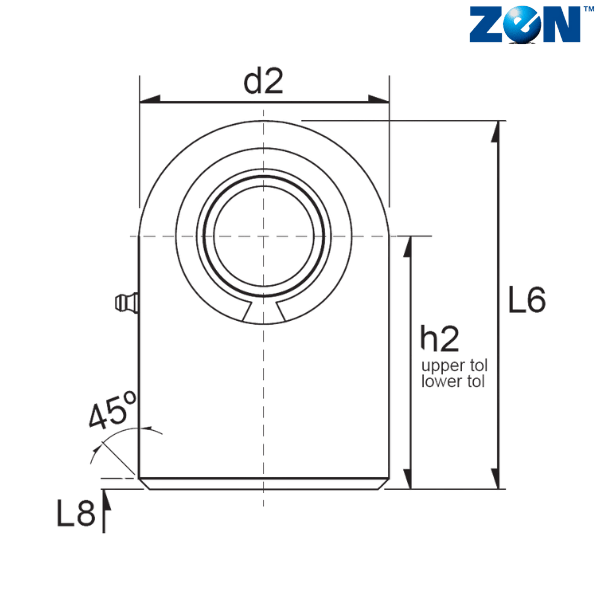

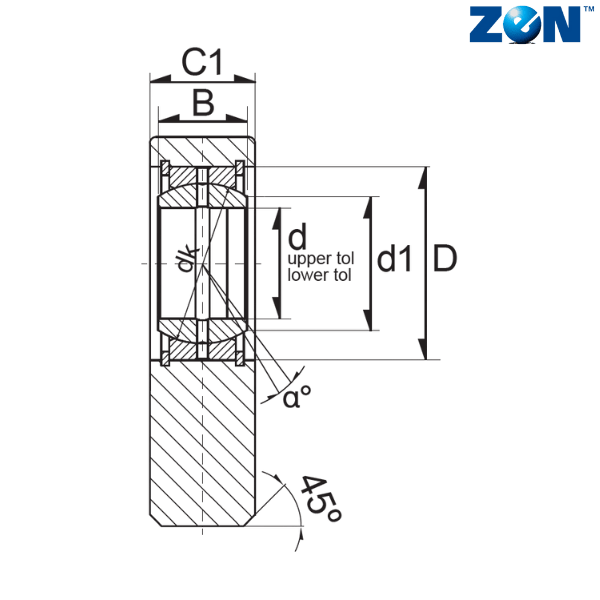

Inner Diameter (d) mm - 30
d2 (mm) - 65
L6 (mm) - 83.5
Width (B) mm - 22
C1 (mm) - 28
Maximum C1 (mm) - 29
D (mm) - 47
d1 (mm) - 34.2
dk (mm) - 40.7
h2 (mm) - 51
R1 (mm) - 0.6
α - 6
Weight (kg) - 0.87
Dynamic Load Rating (N) - 56070
Static Load Rating (N) - 104400
Radial Clearance - 0.037-0.10

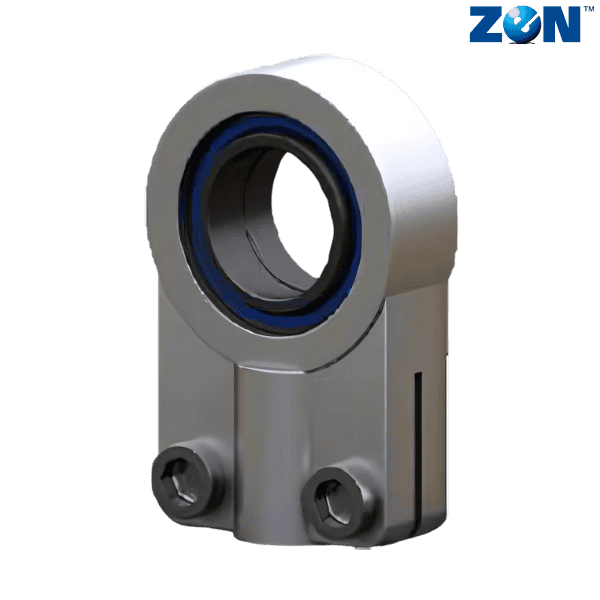

** Images are for representation purposes only
