Description
Brand - ZEN
Item Number - GF25-DO ZEN
Category - Hydraulic Rod Ends

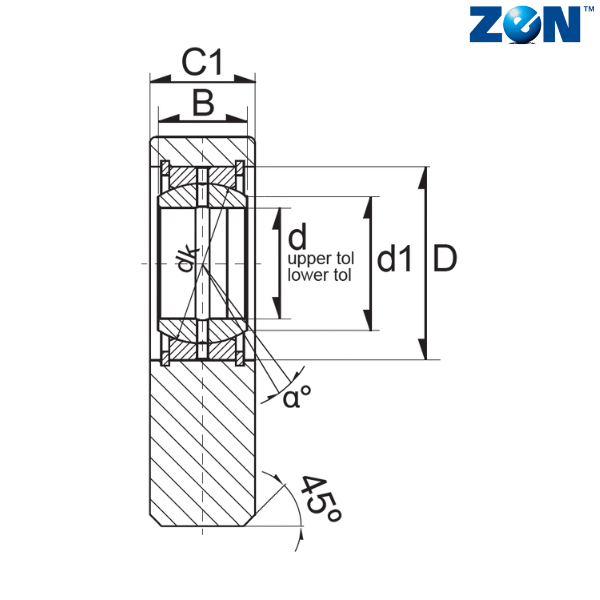

Inner Diameter (d) mm - 25

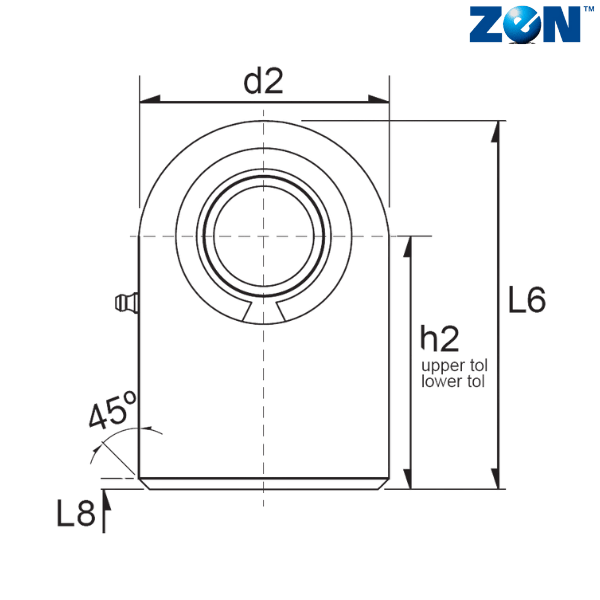

d2 (mm) - 55
L6 (mm) - 72.5
Width (B) mm - 20
C1 (mm) - 23
Maximum C1 (mm) - 24
D (mm) - 42
d1 (mm) - 29.3
dk (mm) - 35.5
h2 (mm) - 45
R1 (mm) - 0.6
α - 7
Weight (kg) - 0.53
Dynamic Load Rating (N) - 43470
Static Load Rating (N) - 61920
Radial Clearance - 0.037-0.10

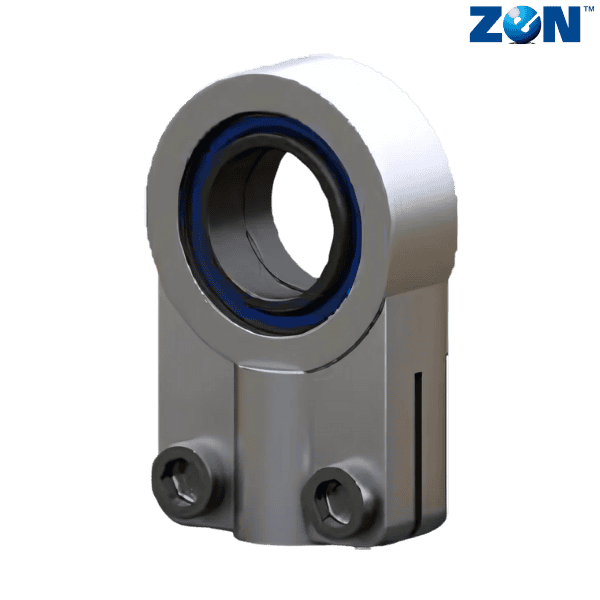

** Images are for representation purposes only
