Description
Brand - ZEN
Item Number - GF20-DO ZEN
Category - Hydraulic Rod Ends

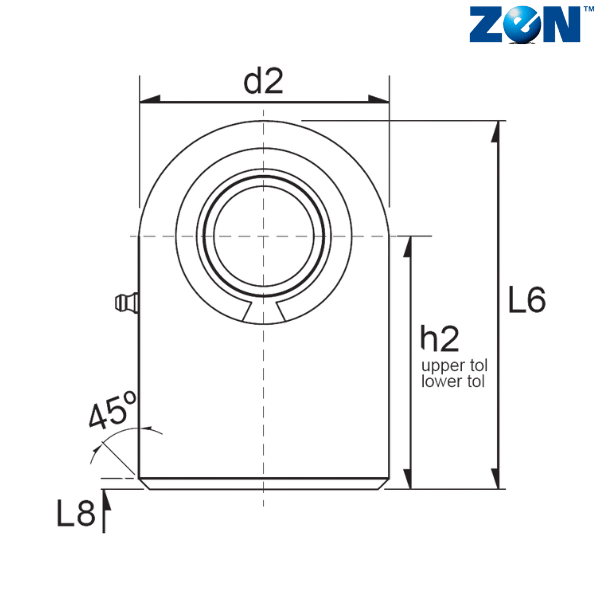

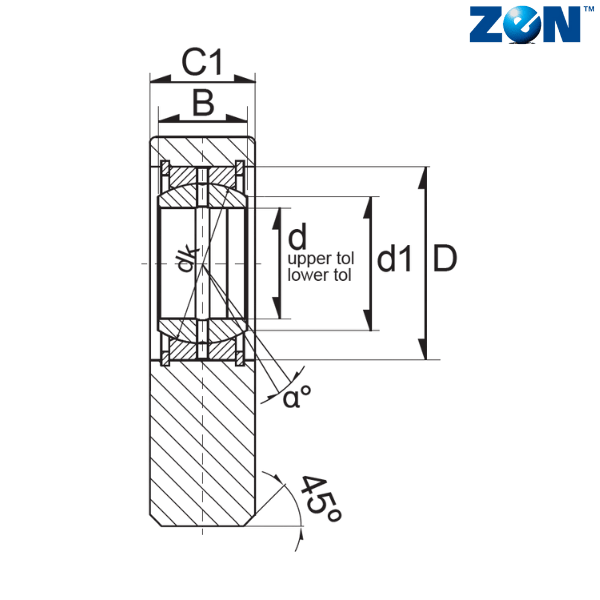

Inner Diameter (d) mm - 20
d2 (mm) - 50
L6 (mm) - 63
Width (B) mm - 16
C1 (mm) - 19
Maximum C1 (mm) - 20
D (mm) - 35
d1 (mm) - 24.2
dk (mm) - 29
h2 (mm) - 38
R1 (mm) - 0.3
α - 9
Weight (kg) - 0.35
Dynamic Load Rating (N) - 26640
Static Load Rating (N) - 59040
Radial Clearance - 0.030-0.082

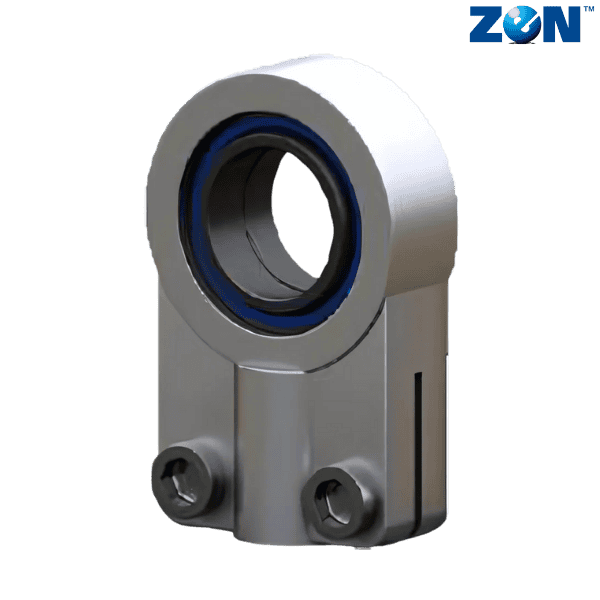

** Images are for representation purposes only
