GE850-DO INA


Country of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - GE850-DO INA
Category - Radial Spherical Plain Bearing
Weight (Kg) - 1047

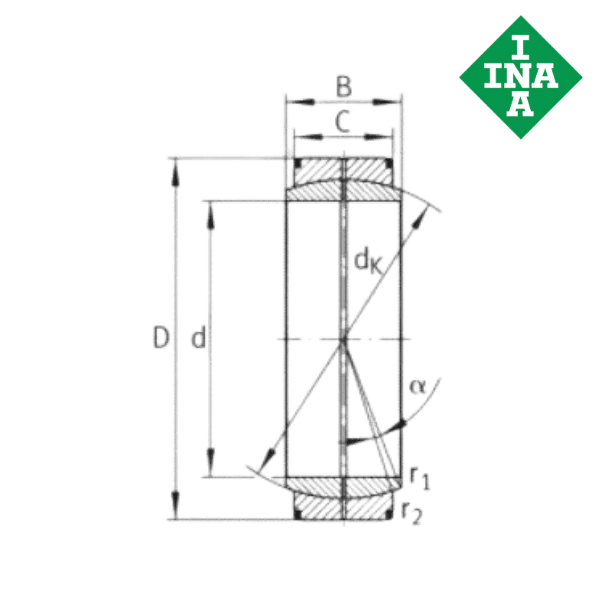

Inner Diameter Bearing (d) mm - 850
Outer Diameter Bearing (D) mm - 1120
Width Inner Ring (B) mm - 365
Width Outer Ring (C) mm - 310
Ball Diameter (dk) mm - 985
Tilt Angle (a°) - 3.4
Minimum Edge Spacing (r1) mm - 3
Minimum Edge Spacing (r2) mm - 6

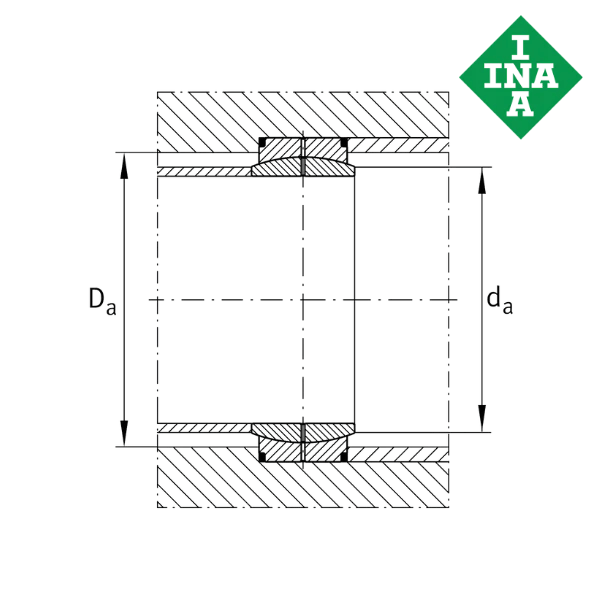

Maximum Connection Measure Inner Ring (da) mm - 914.8
Minimum Housing Connection Diameter (Da) mm - 940
Basic Dynamic Load Rating, Radial (Cr) kN - 28500
Basic Static Load Rating, Radial (C0r) kN - 143000
Radial Clearance (Gr) mm - 0.17 – 0.35

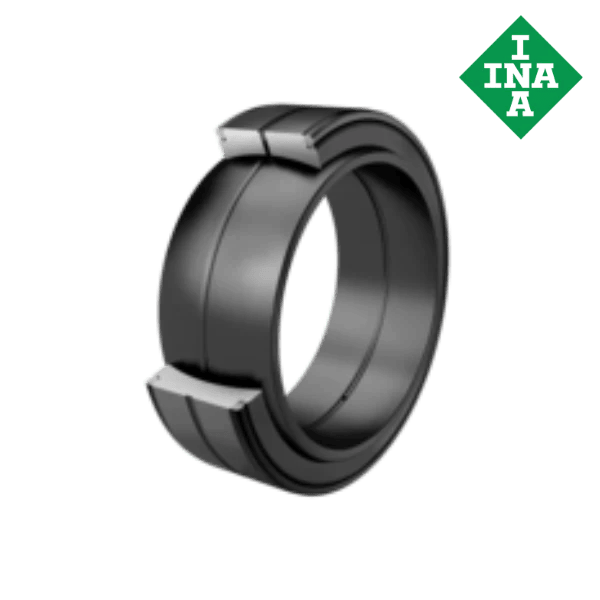

** Images are for representation purposes only
