Description
Brand - INA
Item Number - GE80-FW-2RS-A INA
Category - Spherical Plain Bearing
Also known as - (0066504570000) , (GEH80TXE-2RS)
Inner (d) MM - 80
Outer (D) MM - 130
Width (B) MM - 75
Inner (d) Inch - 3.1496
Outer (D) Inch - 5.1181
Width (B) Inch - 2.9528
Weight (kg) - 3.481
Seal - 2RS - Rubber Seal on Two Sides
Contact Material - Steel on PTFE

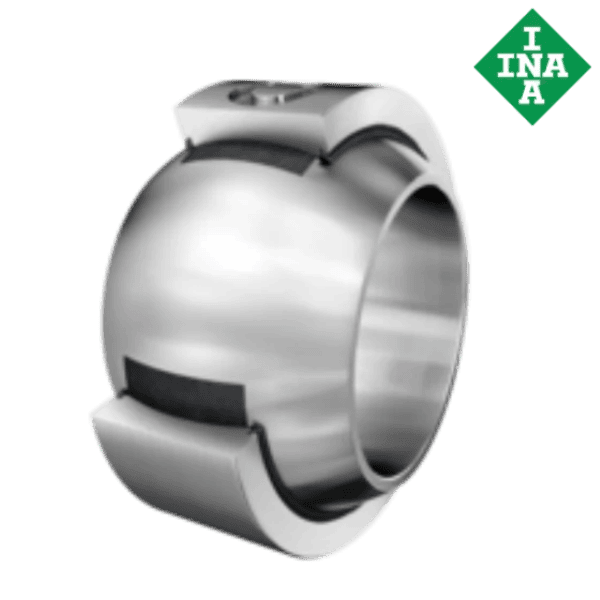

** Images are for representation purposes only
