Country of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - GE750-DO INA
Category - Radial Spherical Plain Bearing
Weight (Kg) - 779.2
Inner Diameter Bearing (d) mm - 750
Outer Diameter Bearing (D) mm - 1000
Width Inner Ring (B) mm - 335
Width Outer Ring (C) mm - 280
Ball Diameter (dk) mm - 875
Tilt Angle (a°) - 3.8
Minimum Edge Spacing (r1) mm - 3
Minimum Edge Spacing (r2) mm - 6

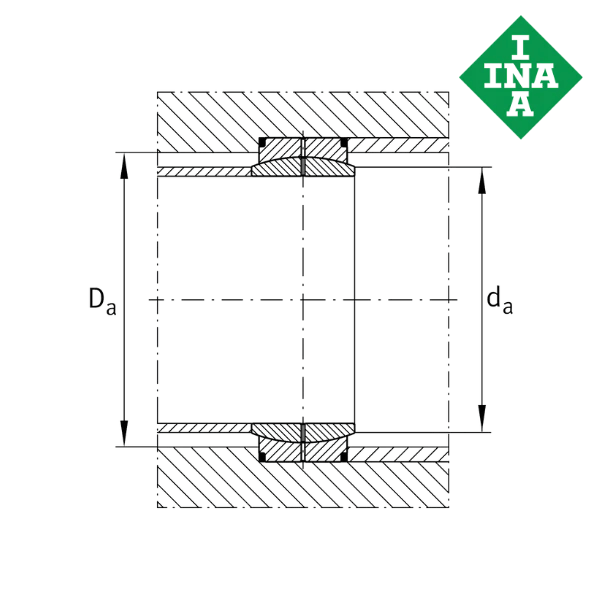

Maximum Connection Measure Inner Ring (da) mm - 808.3
Minimum Housing Connection Diameter (Da) mm - 834
Basic Dynamic Load Rating, Radial (Cr) kN - 22800
Basic Static Load Rating, Radial (C0r) kN - 114000
Radial Clearance (Gr) mm - 0.17 – 0.35
