Description

Brand - INA
Item Number - GE710-DO INA
Category - Radial Spherical Plain Bearing
Weight (Kg) - 693
Inner Diameter Bearing (d) mm - 710
Outer Diameter Bearing (D) mm - 950
Width Inner Ring (B) mm - 325
Width Outer Ring (C) mm - 275
Ball Diameter (dk) mm - 830
Tilt Angle (a°) - 3.7
Minimum Edge Spacing (r1) mm - 3
Minimum Edge Spacing (r2) mm - 6

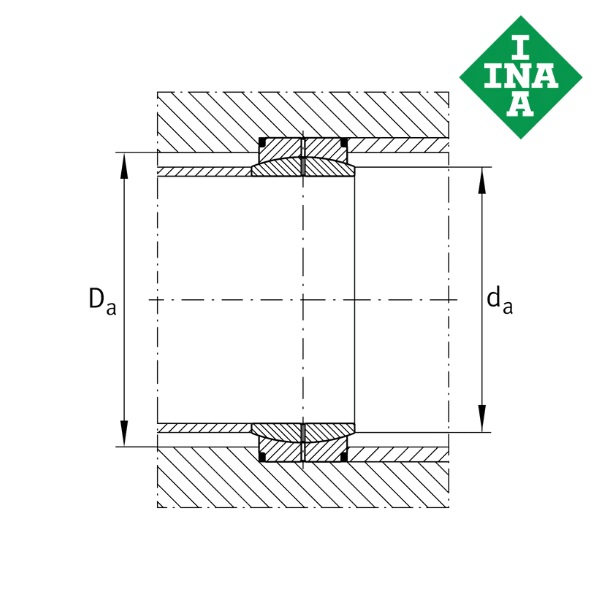

Maximum Connection Measure Inner Ring (da) mm - 763.7
Minimum Housing Connection Diameter (Da) mm - 789
Basic Dynamic Load Rating, Radial (Cr) kN - 21200
Basic Static Load Rating, Radial (C0r) kN - 106000
Radial Clearance (Gr) mm - 0.17 – 0.35
